GH-790 wireless system

GH-790 is a pro-audio level UHF wireless system with good distance and sound feature
This is only for stage, studio and live show,
but also can be compatible with our video wireless system GHV-16

UHF single channel switching diversity
Very easy for use with professonal sound quality
Adjustable output volume on transmotter for easy optimization of gain stage
Operating distance is about 60m
white LCD display with blue backlight

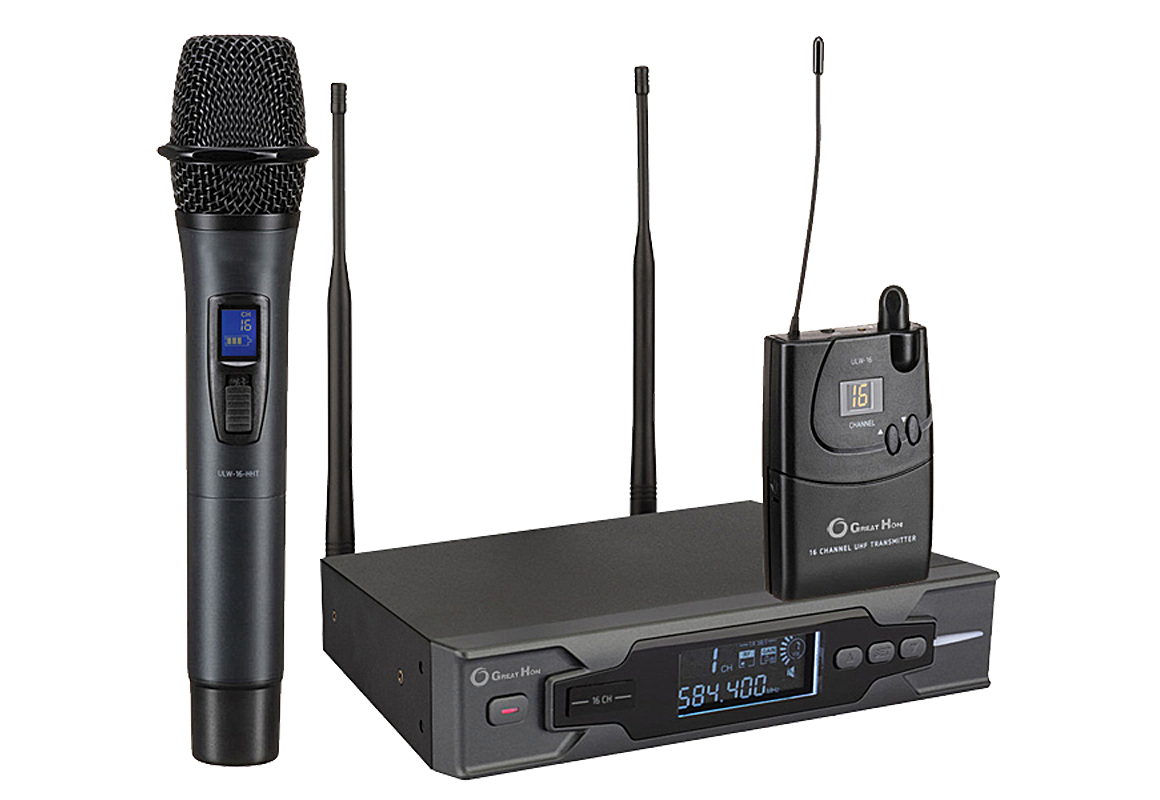

Complete system
  • Model No. GH-790
  • Frequency Range 500-900 MHz
  • Oscillation Mode PLL Synthesized
  • Number of Channels 16
  • Peak Deviation ±55KHz
  • Band width 25 MHz

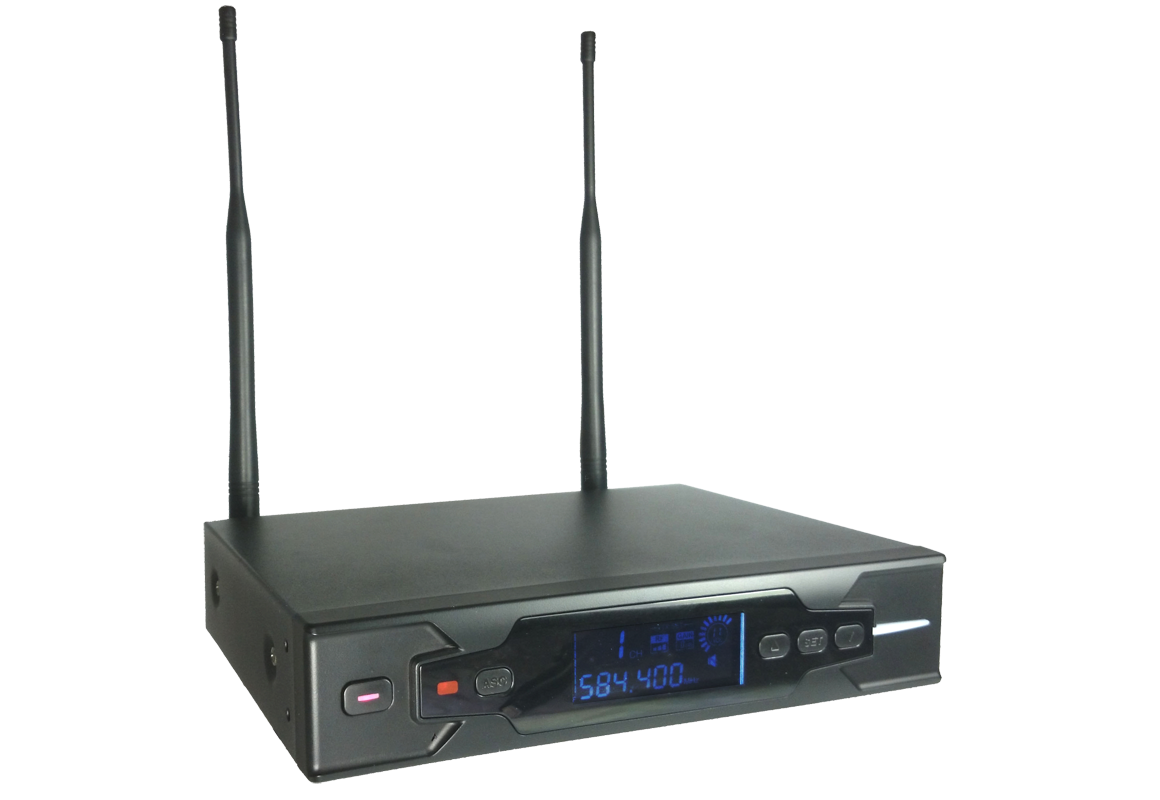

Receiver
  • Model No. GH-790R
  • Receiving Mode Single Channel, Diversity
  • Frequency response 60-18KHz
  • Display LCD
  • Sensitivity < -92 dBm
  • S/N ratio 102 dB(A)
  • THD 0.8%, @ 1 kHz
  • Image Rejection 50 dB
  • Dynamic Range 98 dB
  • Output balanced XLR & 6.3 mm (1/4 )
  • Antenna > 2 × 50 Ω fixed antenna
  • Power supply 12 - 18V DC / 500 mA
  • Size > 212*171*44mm / 800 g

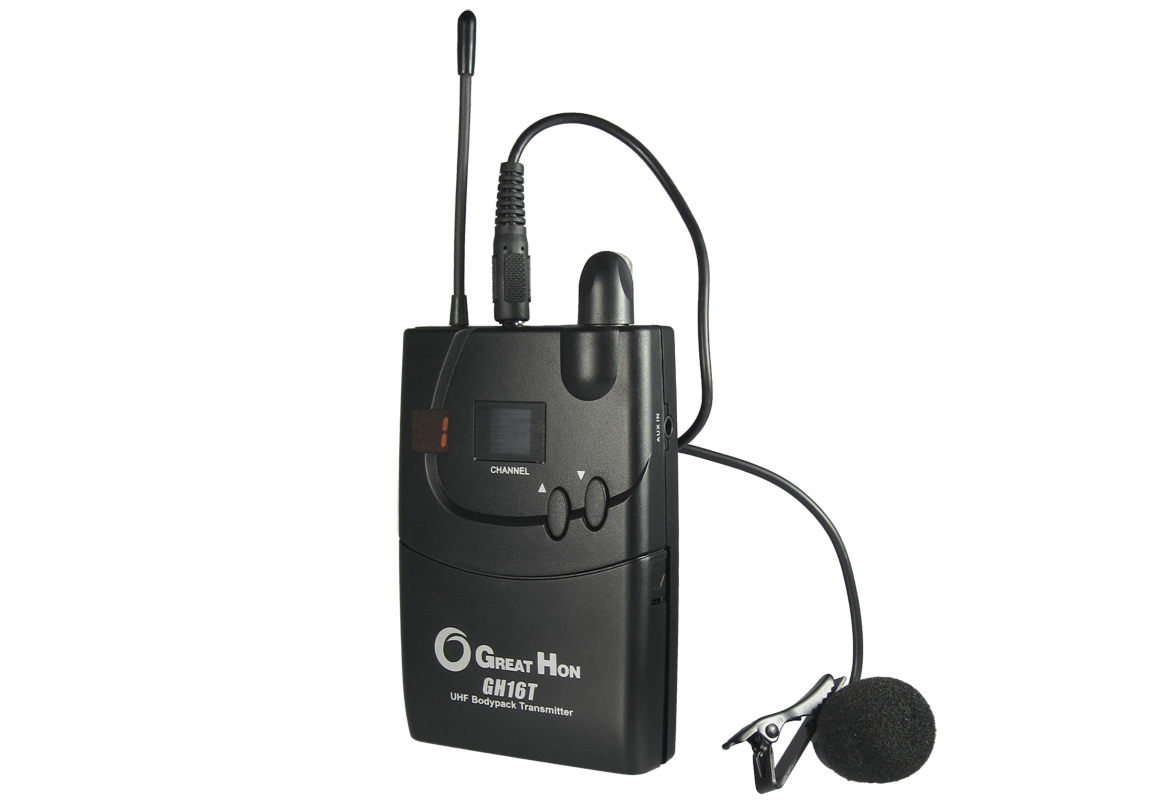

Transmitter
  • Model No. GHV-16HT / GHV-16BT
  • Frequency response 60-18KHz
  • RF Output Power 10 mW
  • Max. Input voltage 100 mW
  • THD 1%
  • Power supply 1.5V AA battery x2
  • Operating time > 10h
  • Size GHV-16HT : 254*53mm / GHV-16PT : 113*65*29mm
  • Weignt GHV-16HT : 385g / GHV-16PT : 94g
