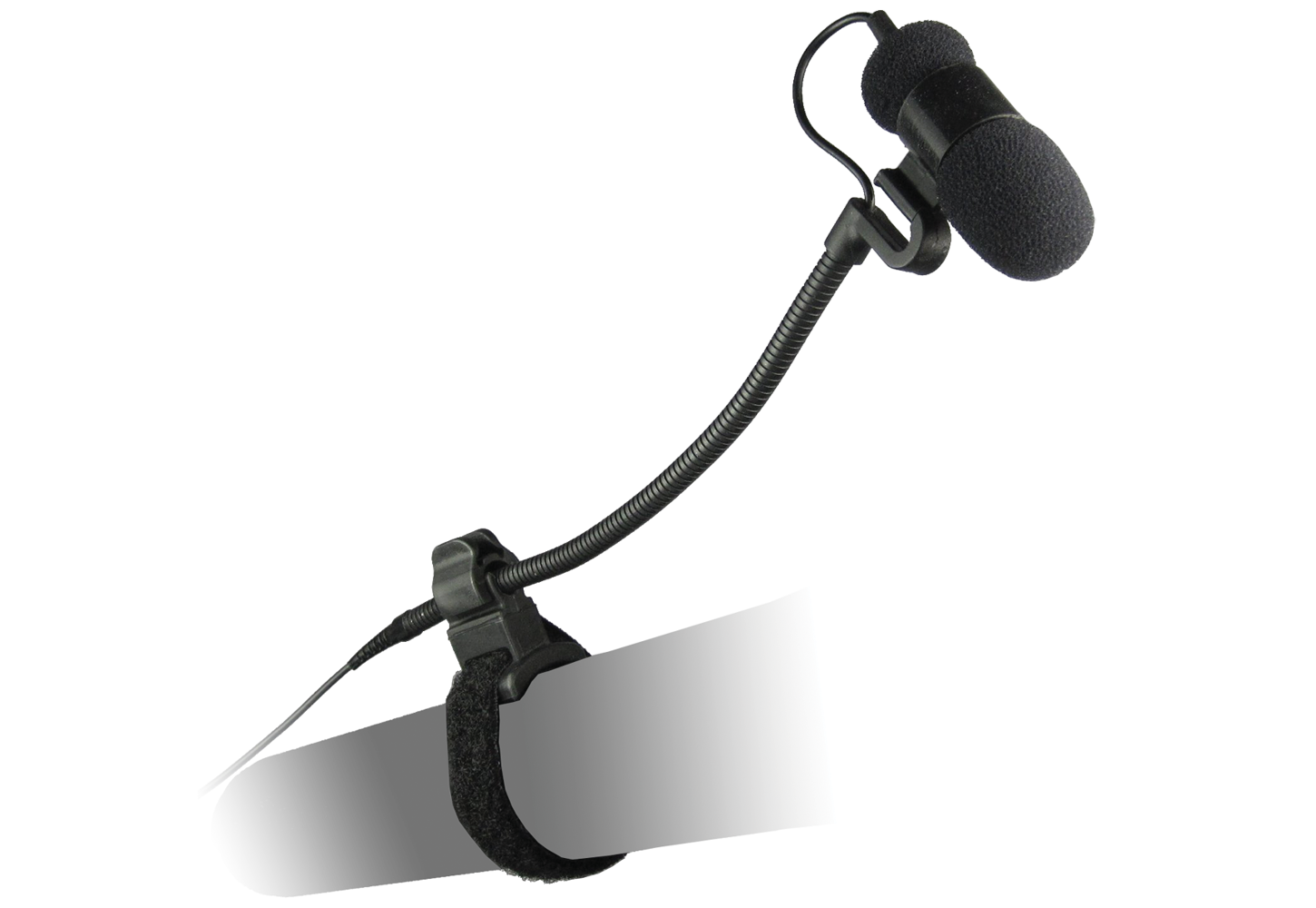

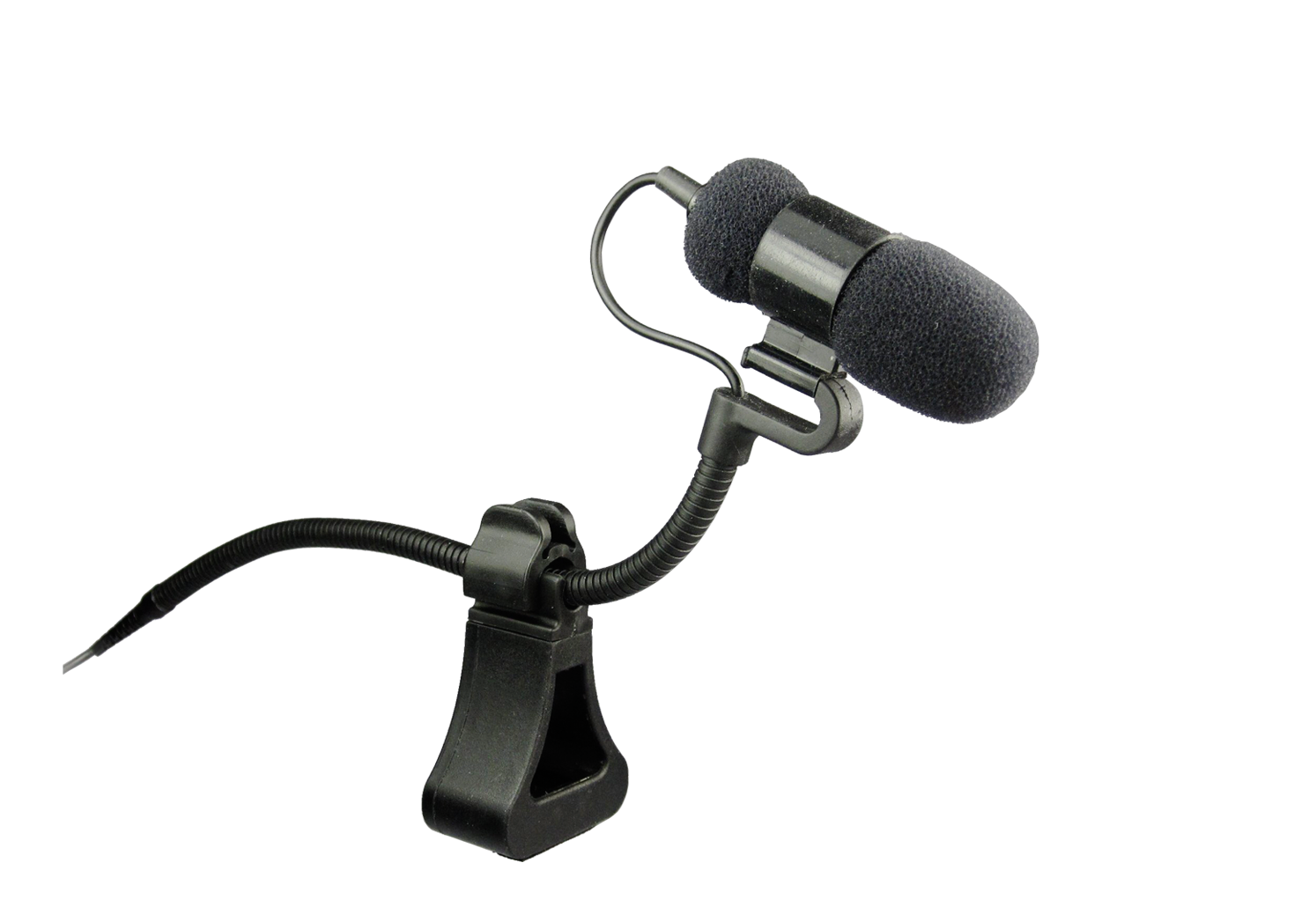

GHC-1 Musical instrument microphone

GHC-1 condenser mini-tube microphone is designed for kinds of musical instrument miking.

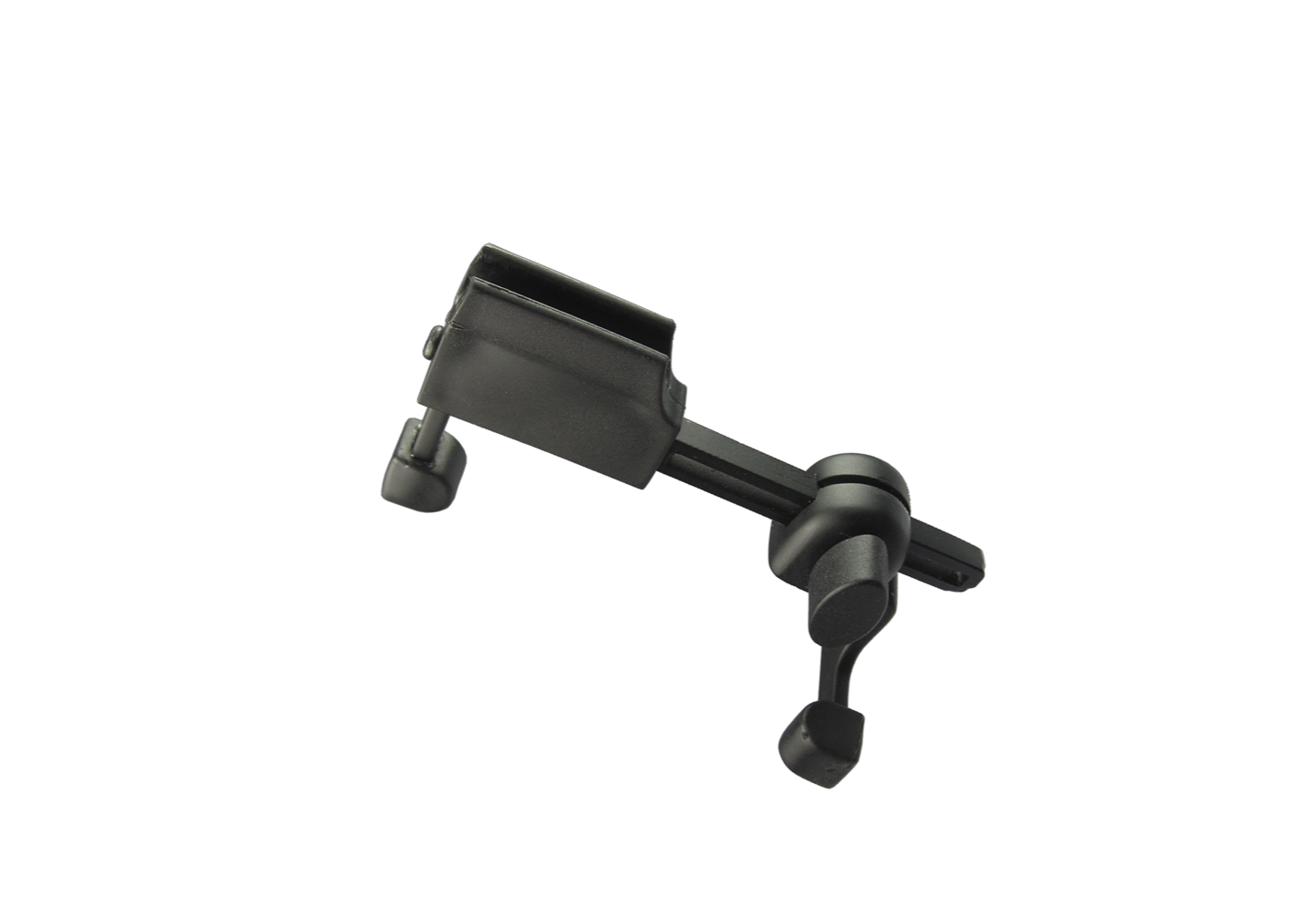

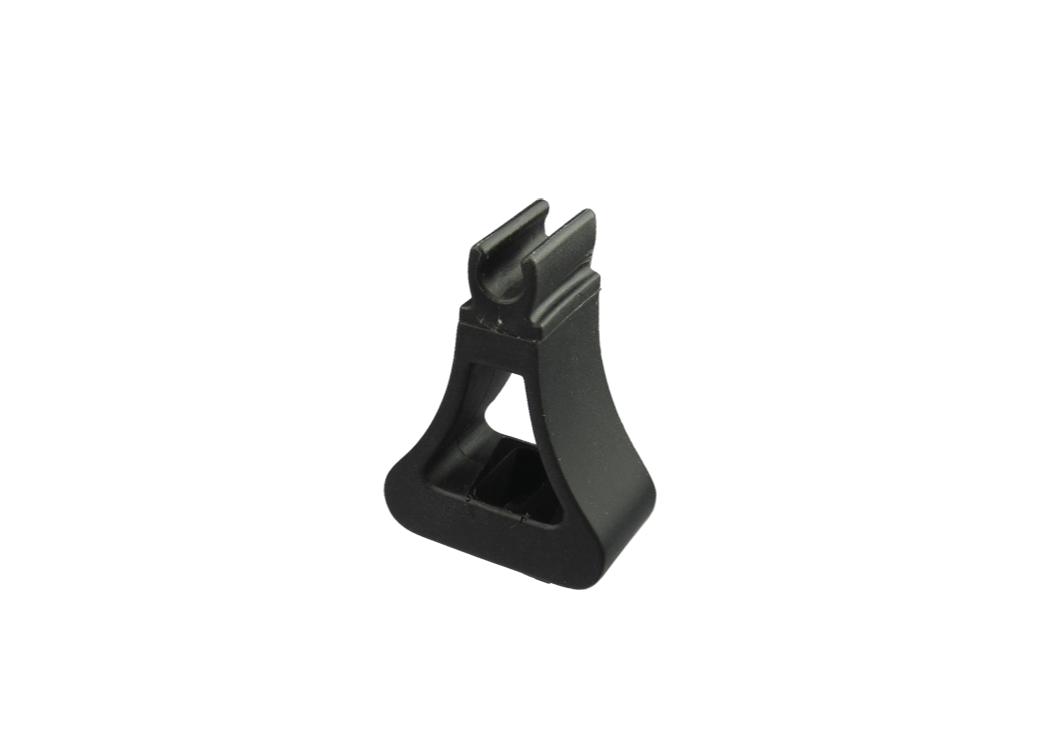

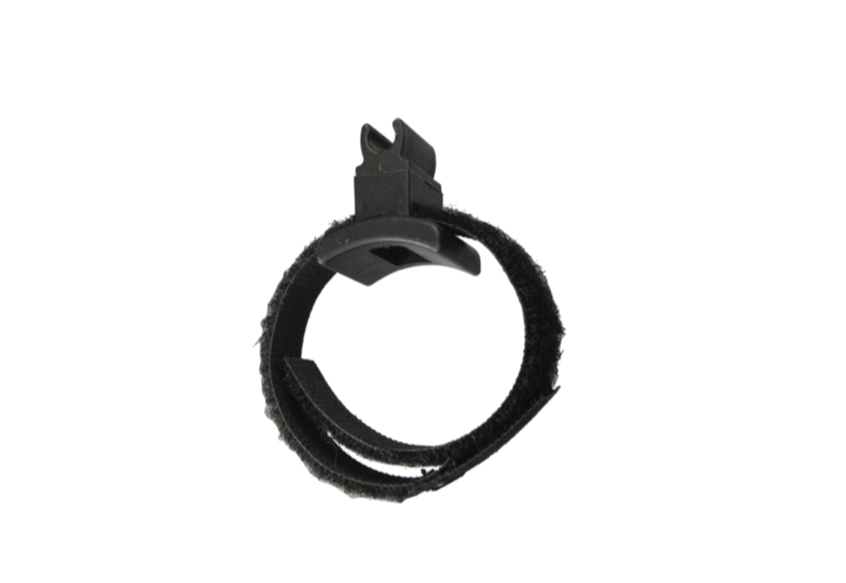

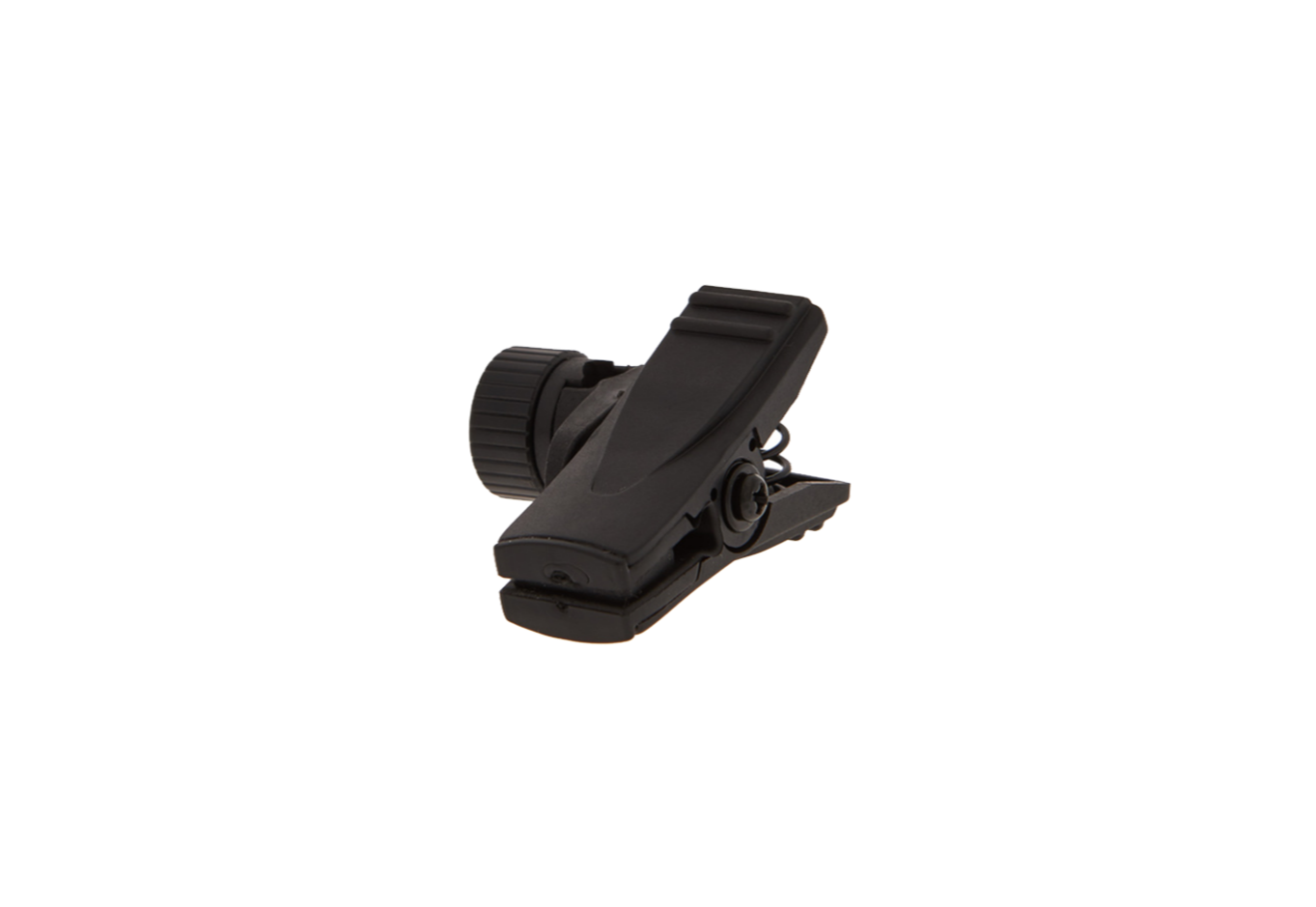

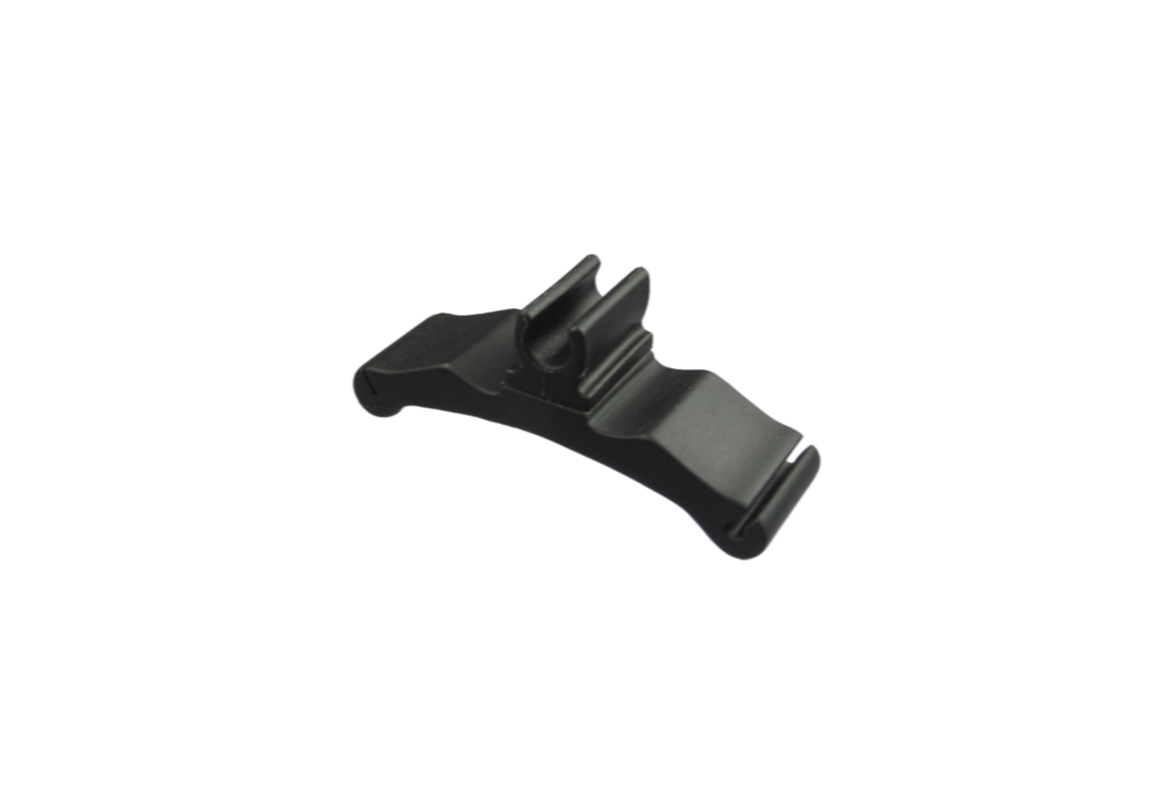

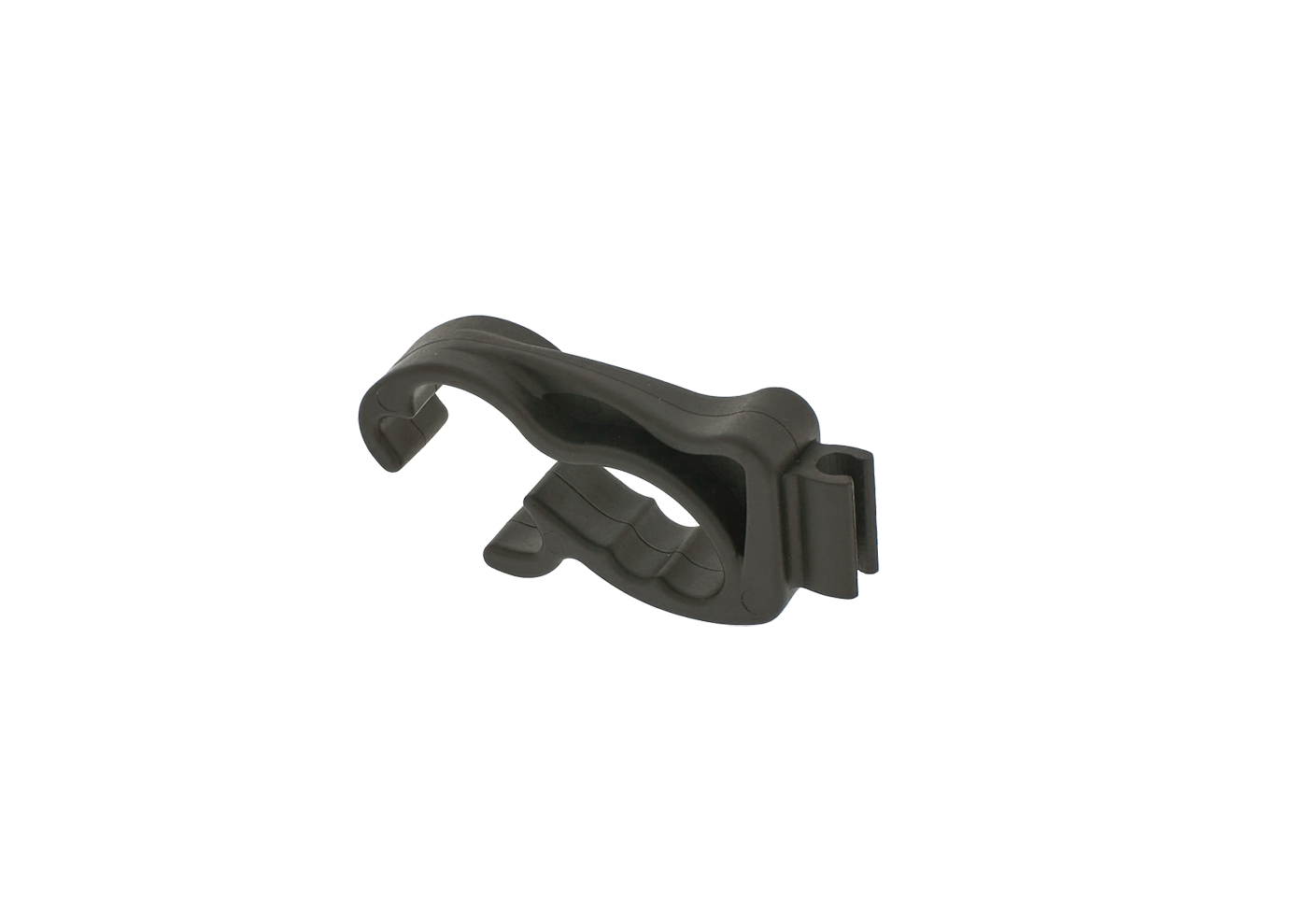

It is equipped with detachable holders for guitar, brass, violin, bass, piono, flute, cello and so on.
With a wonderful sensitivity, even at low volumes GHC-1 work very well to record all the details
of the musical instrument.

˙Tube condenser with high S.P.L and sensitivity for acoustic recording
˙Special shock-protection for  clear and powerful sound recording
˙With gooseneck and detachable holders for kinds of guitar, brass,
  violin, bass, piono,  flute, cello, drums and so on.

  • Element condenser tube
  • Polar Pattern uni-directional
  • Frequency Response 100-16kHz
  • Sensitivity -45dB at 1000Hz
  • SPL 145dB
  • Operating volt 1.5-10V
  • Max current consumption 0.5mA
  • S/N ratio 60 dB, 1 kHz at 1 Pa

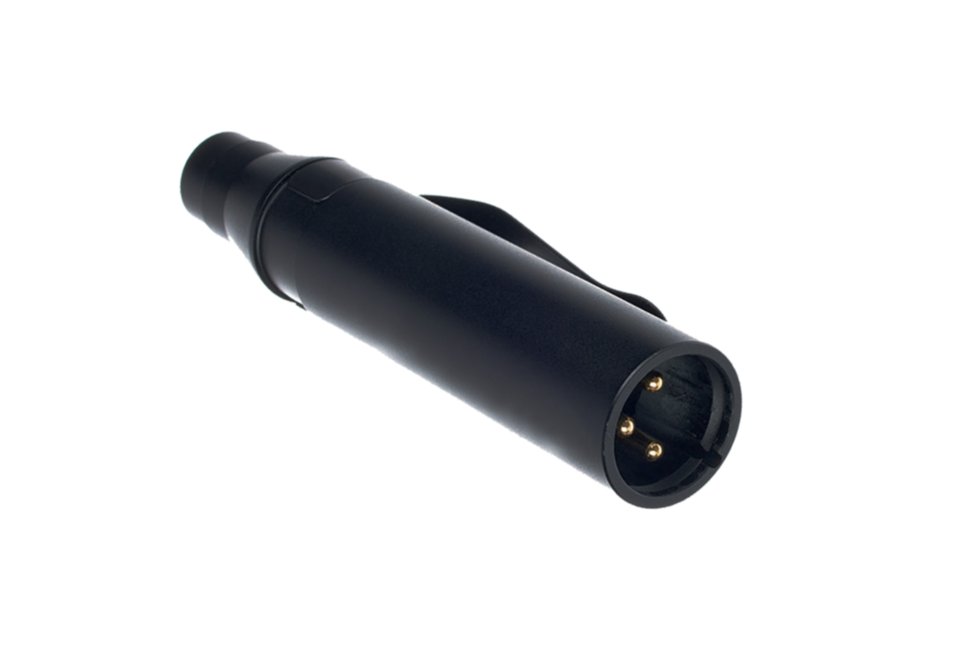

  • Connector mini TA3 to phantom
    power adapter (XLR)
  • Size of Capsule D 4 mm
  • Size 10 x 20 mm
  • Weight 15g
