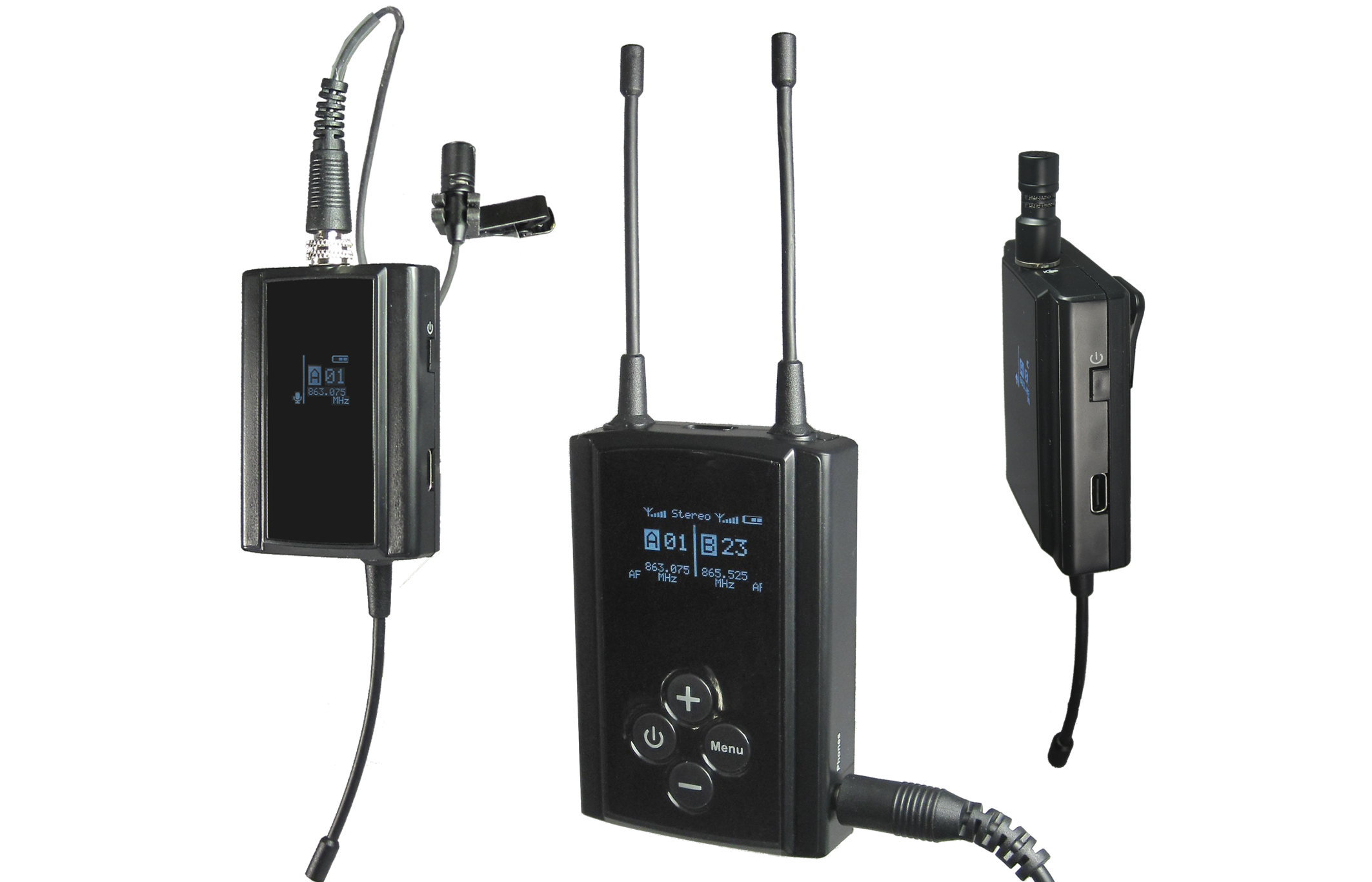

GHD-102 Dual Digital UHF camera miking system

GHD-102 Dual Digital UHF camera miking system

• Dual digital UHF wireless system with ultra-compact design and shape
• 40 to 18KHz frequency response with clear sound feature
• Quick gain control adjustment and switchable stereo/mono output
• Light and cold-shoe compatible clip for easily mounting
• Built-in microphone and TRS mic-in jack on transmitter
• 3.5mm Monitoring jack and 3.5mm switchable line/mic-in jack on receiver
• Oled display channel number, audio level, signal strength, stereo/mono configuration and battery gauge
• Dual receiver system with switchable stereo/mono output
• It is powered by a built-in lithium polymer battery and charged via a Type-C USB connector
• With CE/Rohs & FCC certificate


System
  • Model No. GHD-102
  • Frequency preparation PLL synthesized control OSC
  • Modulation Wideband FM
  • Carrier frequency range UHF 500-960 MHz
  • Frequency response 40 Hz ~ 18 kHz
  • Dynamic range > 80 dB
  • Signal to Noise > 70 dB
  • T.H.D. @ 1KHz < 0.5%
  • Service coverage Open field 150m
  • Operating temperature -10 ~ 50℃

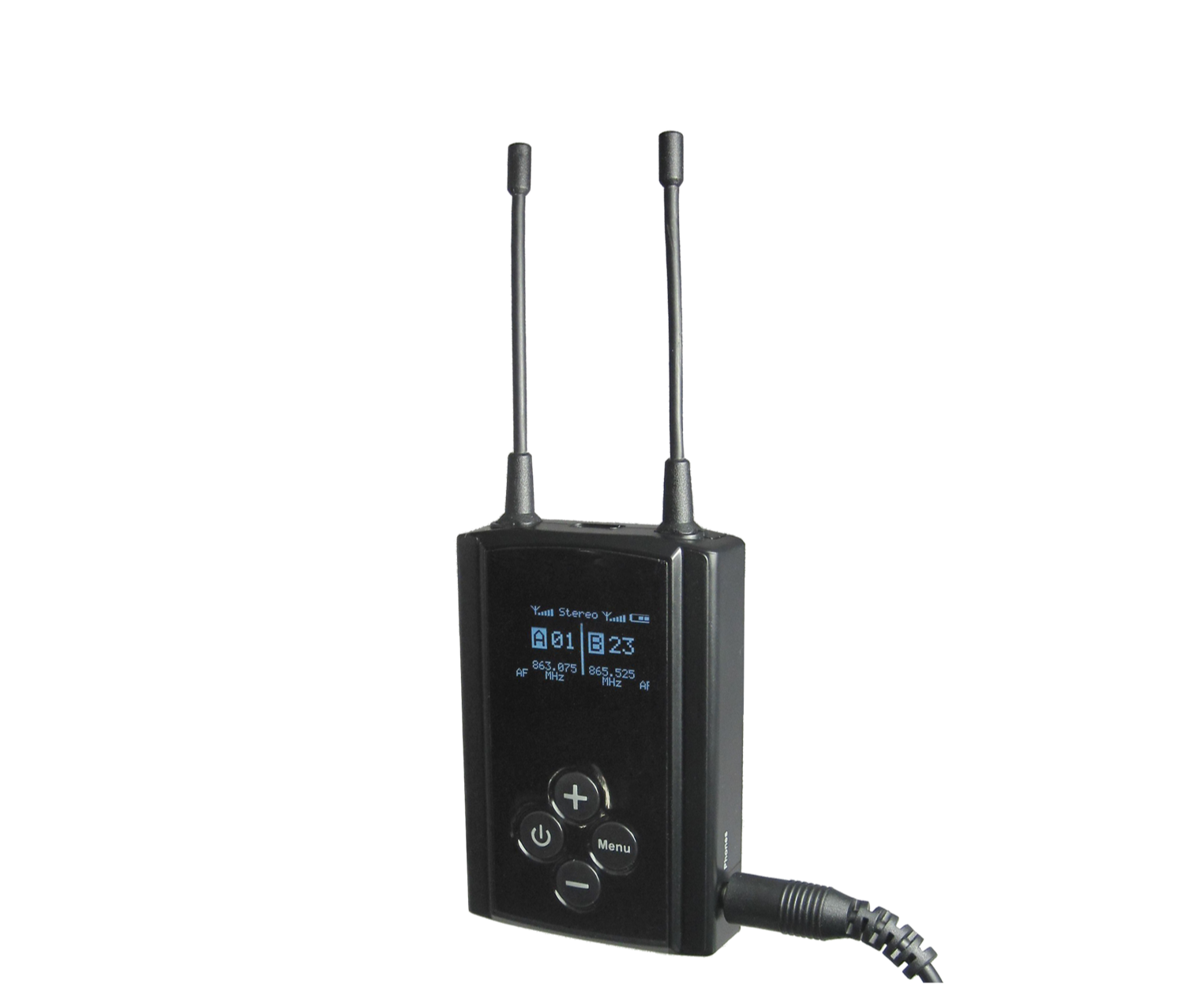

Receiver
  • Model No. GHD-102R
  • Output 3.5mm Monitoring
    3.5mm line/mic-in
  • Battery Meter Li-Polymer (1300mAh/3.7V )
  • Operating time 6 hours
  • Operating buttons Power/+ & - buttons/Menu
  • Display Channel, Battery indicator,
    Volume , Signal Strength
  • Charging power DC 5V Type-C USB
  • Sizesupply 56(W) × 18(D) × 82(H)mm
    Antenna length not included
  • Weignt 688g

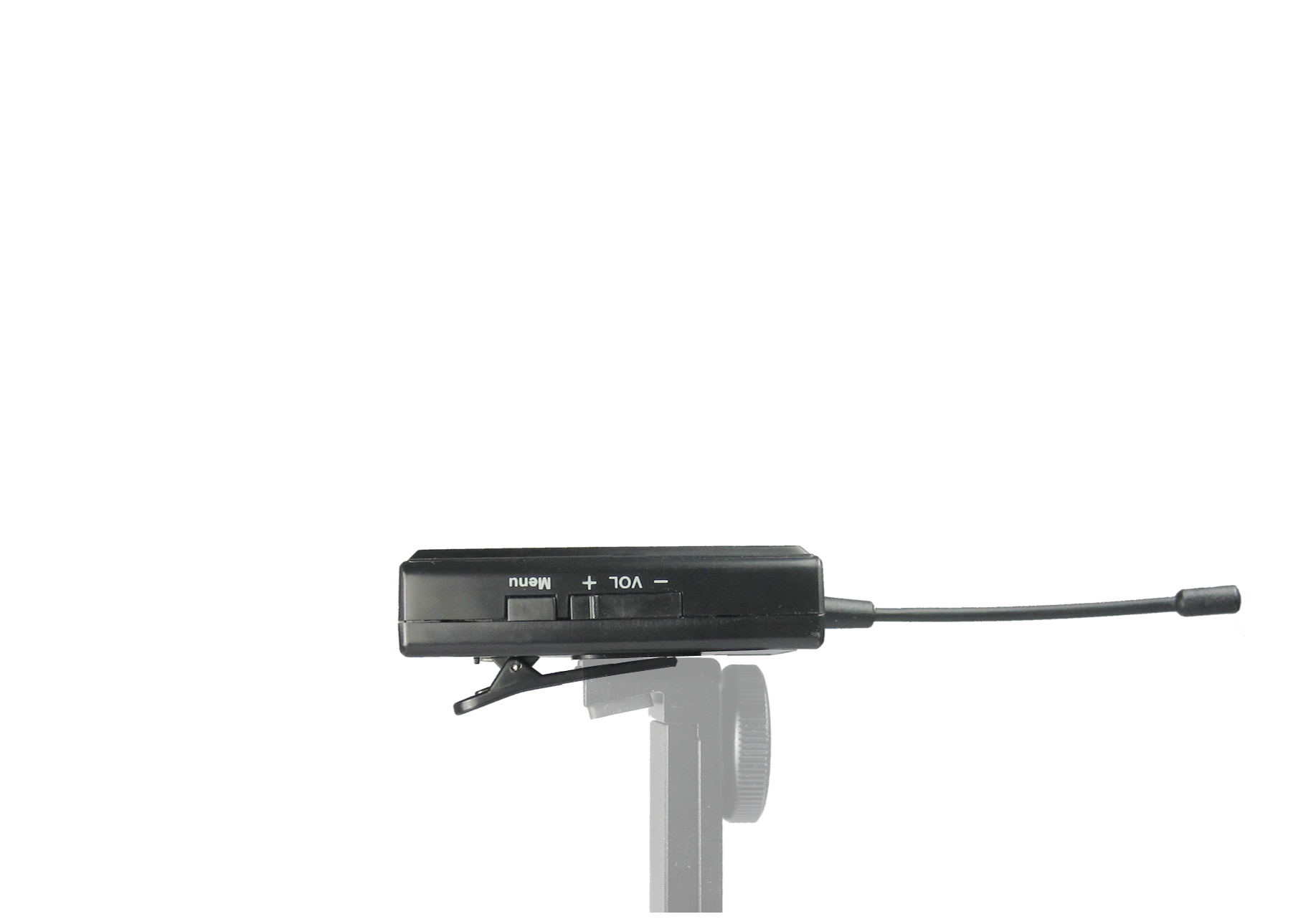

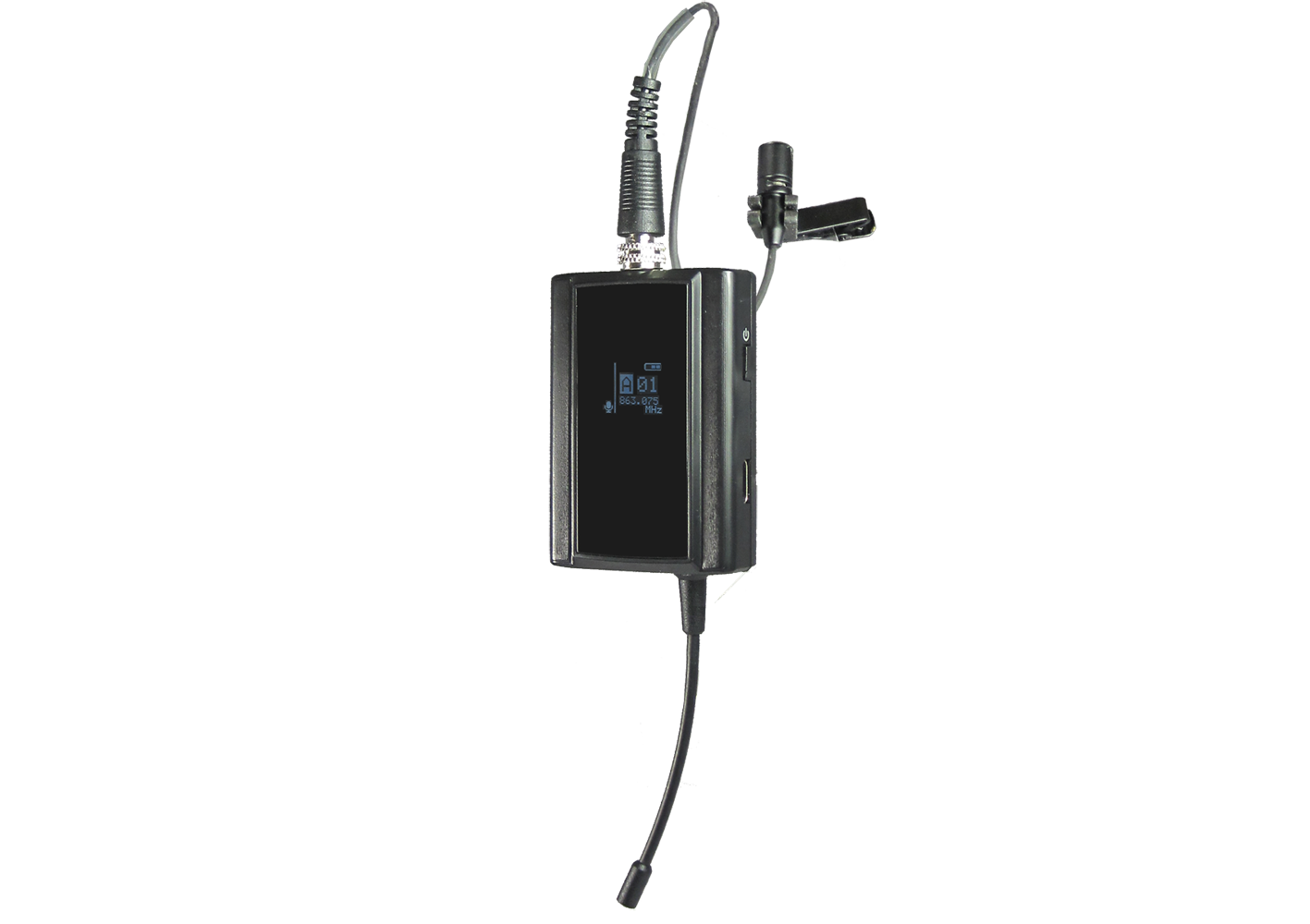

Transmitter
  • Model No. GHD-102T
  • RF Output Power 10mW
  • Input Mic- in jack &
    Built-in Microphone
  • Battery Meter Li-Polymer (630mAh/3.7V )
  • Operating time 5 hiurs
  • Operating buttons Power/+ & - buttons/Menu
  • Display Channel, Battery indicator,
    audio level
  • Charging power DC 5V Type-C USB
  • Size 44(W) × 16(D) × 63(H)mm
    Antenna length not included
  • Weignt 402 g
