GHD-2400 2.4G true diversity system

GHD-2400 series is a professional 2.4g wireless system with 4 hopping frequency, which offers better stability and over 100-meters operation distance.
The good performance of GHD2400 can make it possible to use 2.4g wireless system in stage, studio and broadcasting.

Professional sound quality for studio / stage recording
FHSS frequency-hopping technique with 4 preset hopping frequencies
High-effect rechargeable lithium battery for long term usage
Auto-Scan to self-detect interference-free channel
One-touch ACT syncs and clear indicator for easy use
Made in Taiwan with CE, FCC and RSS-123 ISSUE 2/3 certificate
Complete System
  • Model No. GHD-2400
  • Frequency Rang ISM 2400–2483.5 MHz
  • Audio Sampling 24-bit / 44.1 kHz
  • Latency < 4.0 ms
  • Frequency-hopping 4 preset hopping frequencies
  • Preset Frequency 12
  • Band width 83 MHz
Receiver

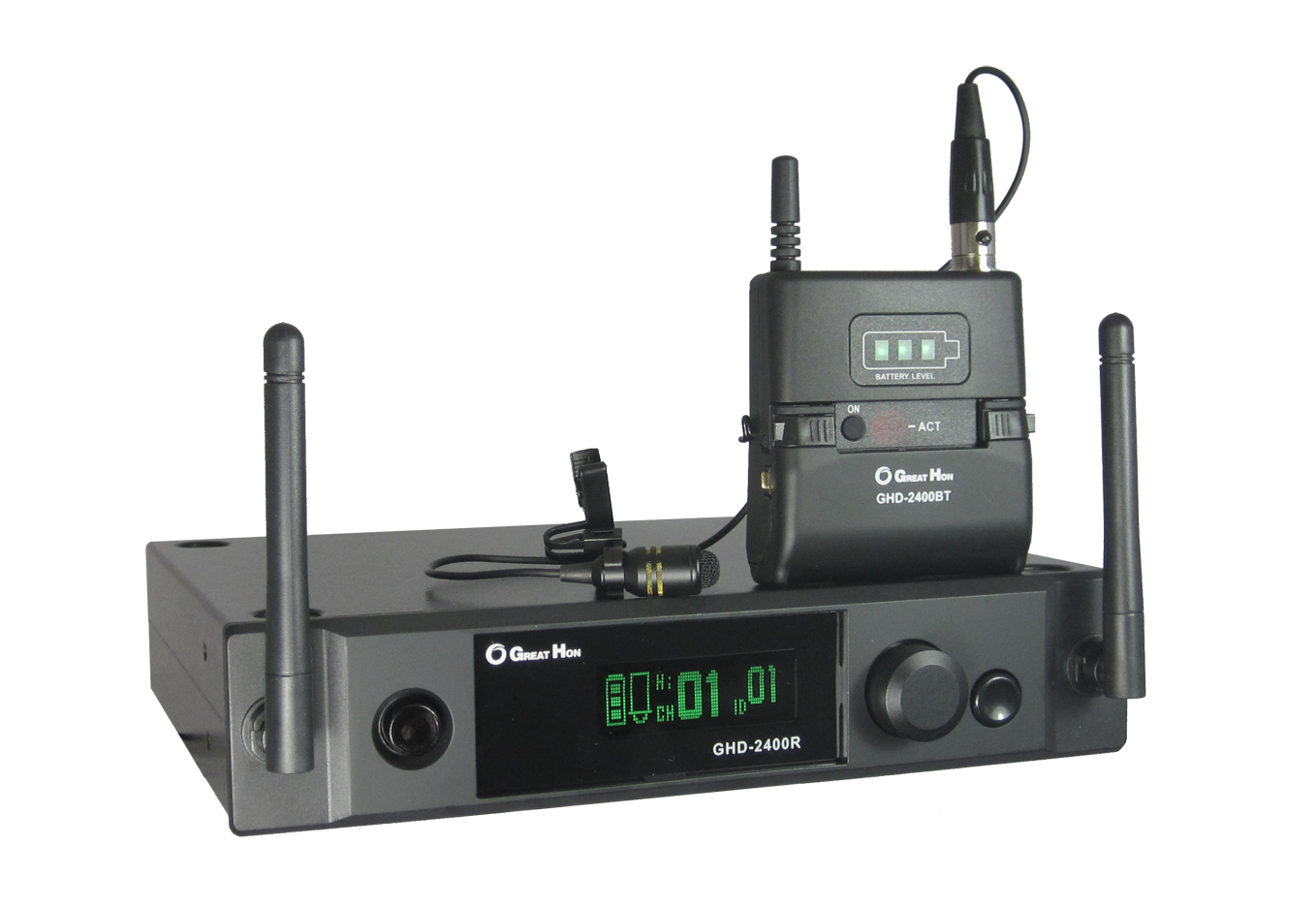

  • Model No. GHD-2400R
  • Frequency response 20-20kHz
  • Display graphic OLED
  • Frequency Stability ± 0.005%
  • Sensitivity < -95 dBm
  • S/N ratio > 115 dB(A)
  • THD > 0.1%, @ 1 kHz
  • Audio Output Adjustment -10 ~ +20 dB
  • Output balanced XLR & 6.3 mm (1/4 )
  • Antenna 2 × 50 Ω fixed antenna
  • Power supply 12 - 18V DC / 300 mA
  • Size 210*180*40mm / 750 g
transmitter

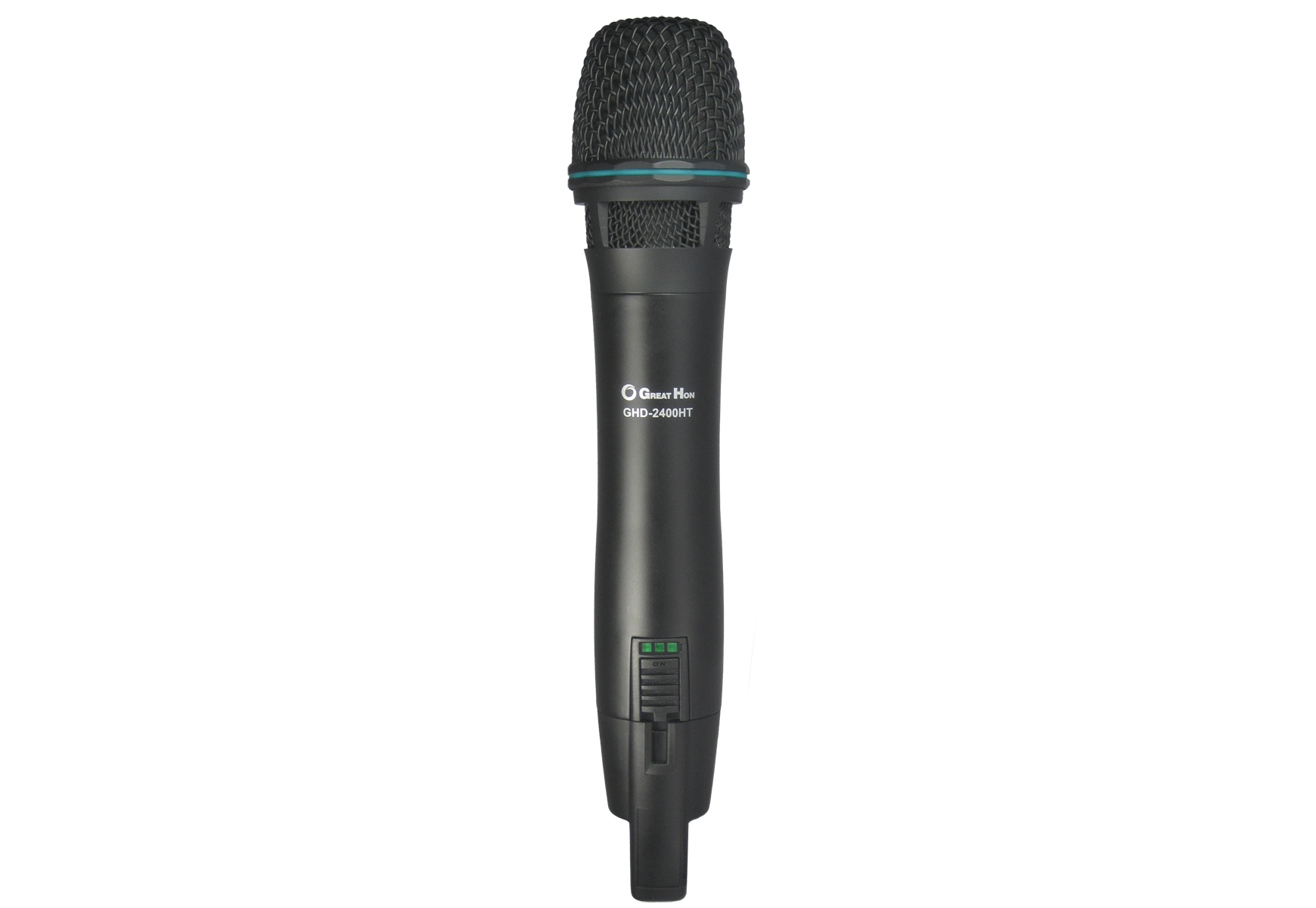

  • Model No. GHD-2400HT / GHD-2400BT
  • Frequency response 20-20kHz
  • RF Output Power 2 mW / 10 mW switchable
  • Max. Audio Input 6.5 dBV
  • Current Consumption Approx. 138 mA
  • Channel Set-Up ACT sync
  • Battery Meter 4-level green / red LED display

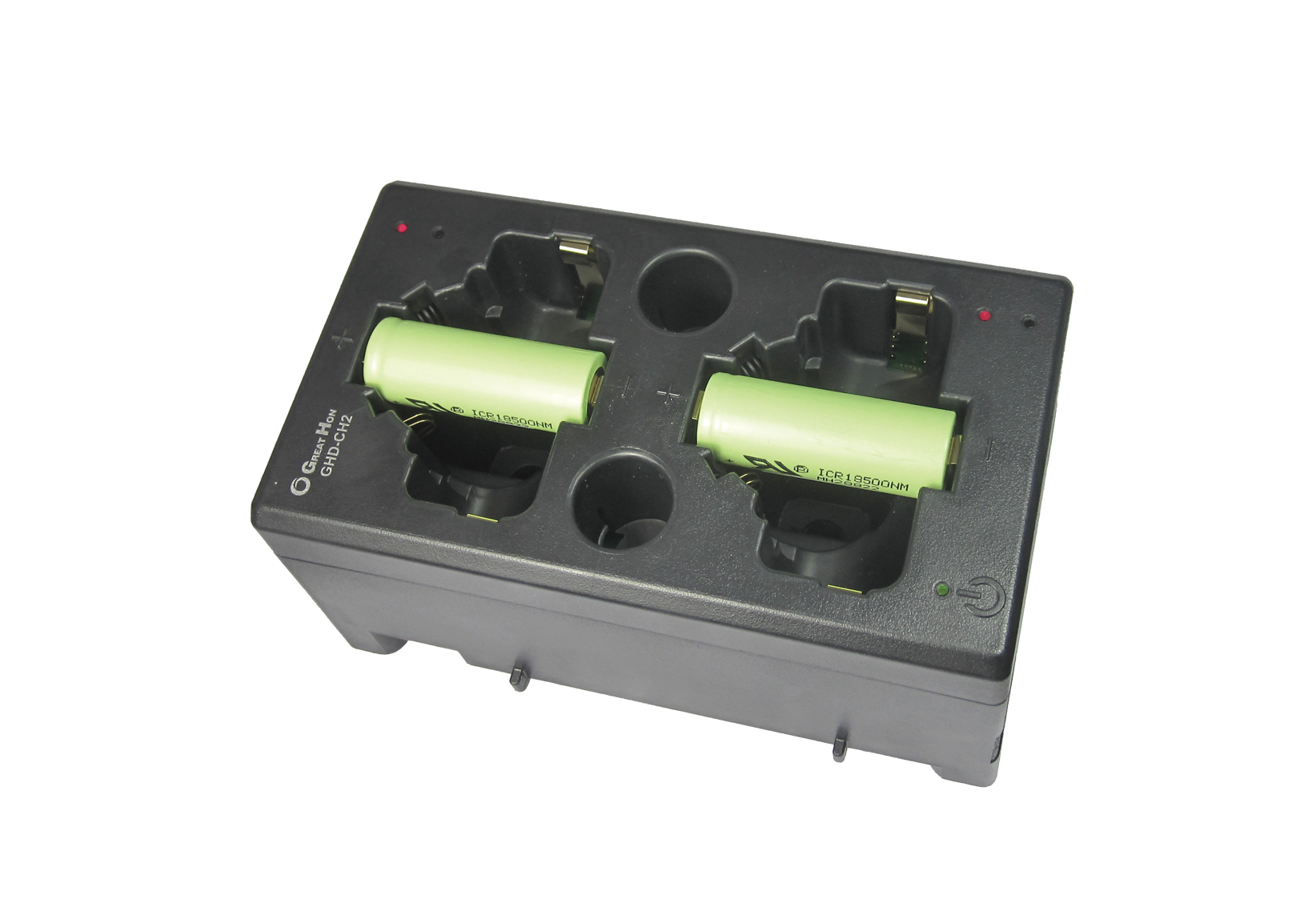

  • Power supply ICR 18500 lithium battery
  • Operating time > 10h
  • Size GHD-2400HT : 248*51mm
    GHT - 2400PT : 63*70*25mm
  • Weignt GHD-2400HT : 255g
    GHT - 2400PT : 66g
