˙ Wonderful sound quality for music instruments studio /stage recording with 4-frequencies FHSS hopping technique

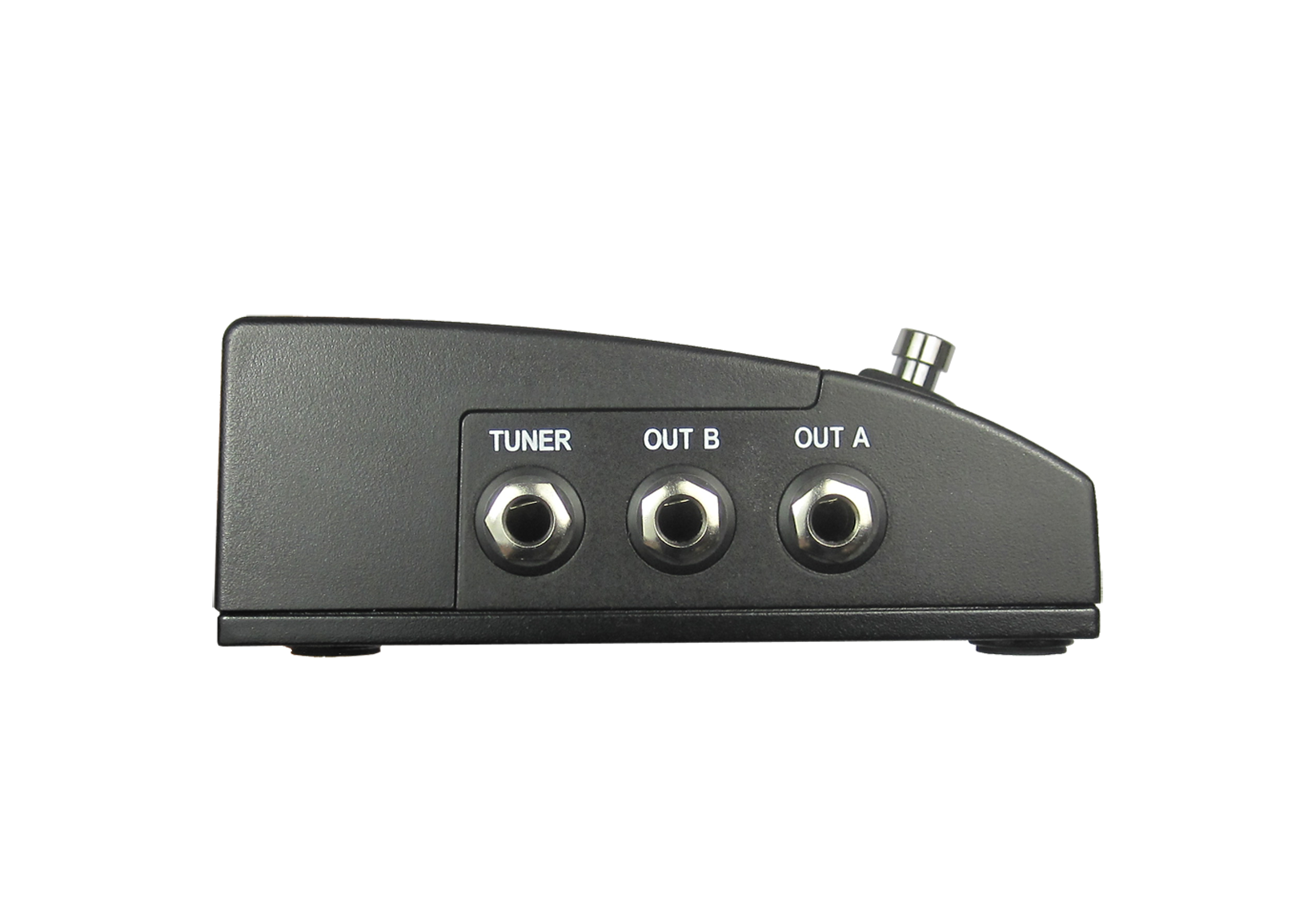

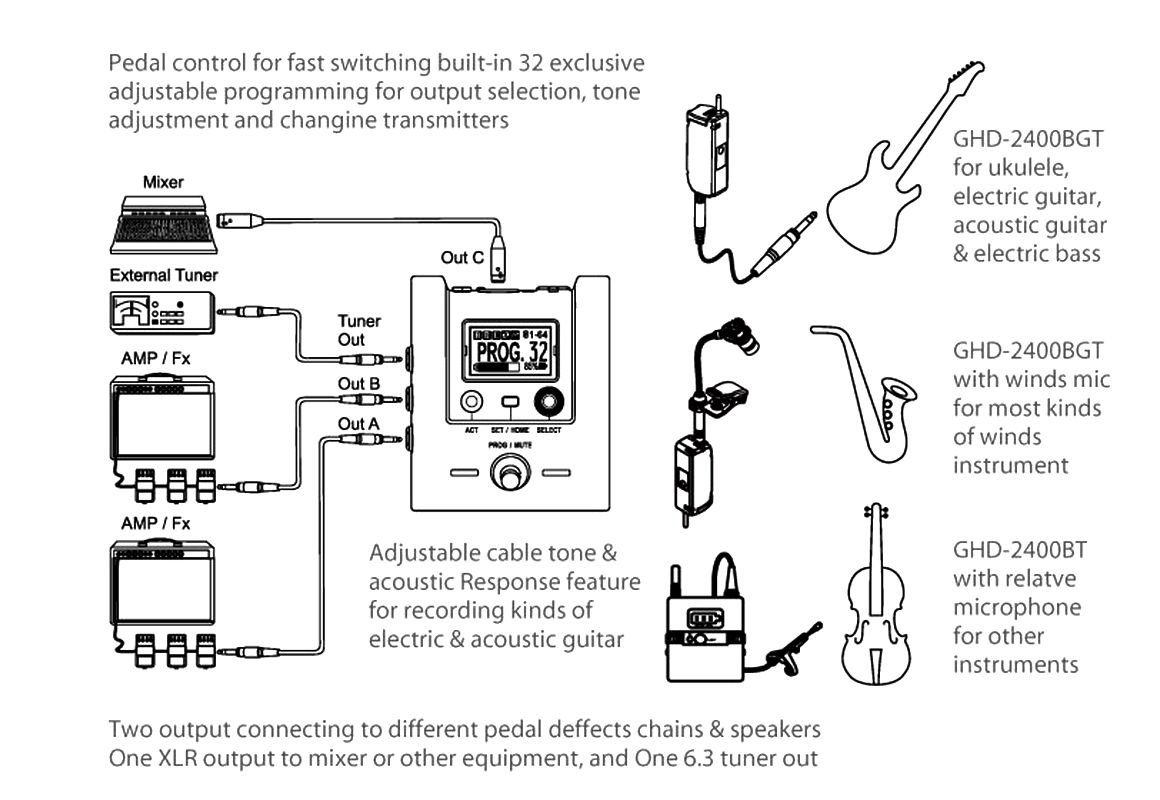

˙ One 6.3mm jack to tunner, two 6.3mm output for connecting pedal effects chain & monitor speaker, and XLR to mixer
˙ Pedal controling for transmitters (connecting to different music instruments) switching for instant instrument change
˙ Built-in 32 exclusive adjustable programming for output selection, tone adjustment, LED color and changine transmitters
˙ Adjustable cable tone & acoustic Response feature for recording kinds of electric & acoustic guitar
˙ Made in Taiwan with CE, FCC and RSS-123 ISSUE 2/3 certificate
˙ 8 LED colors for fast and easy programmed identification
˙ Selectable & multible mode for A / B / Tunner ouput
˙ One-touch ACT syncs and clear indicator for easy use

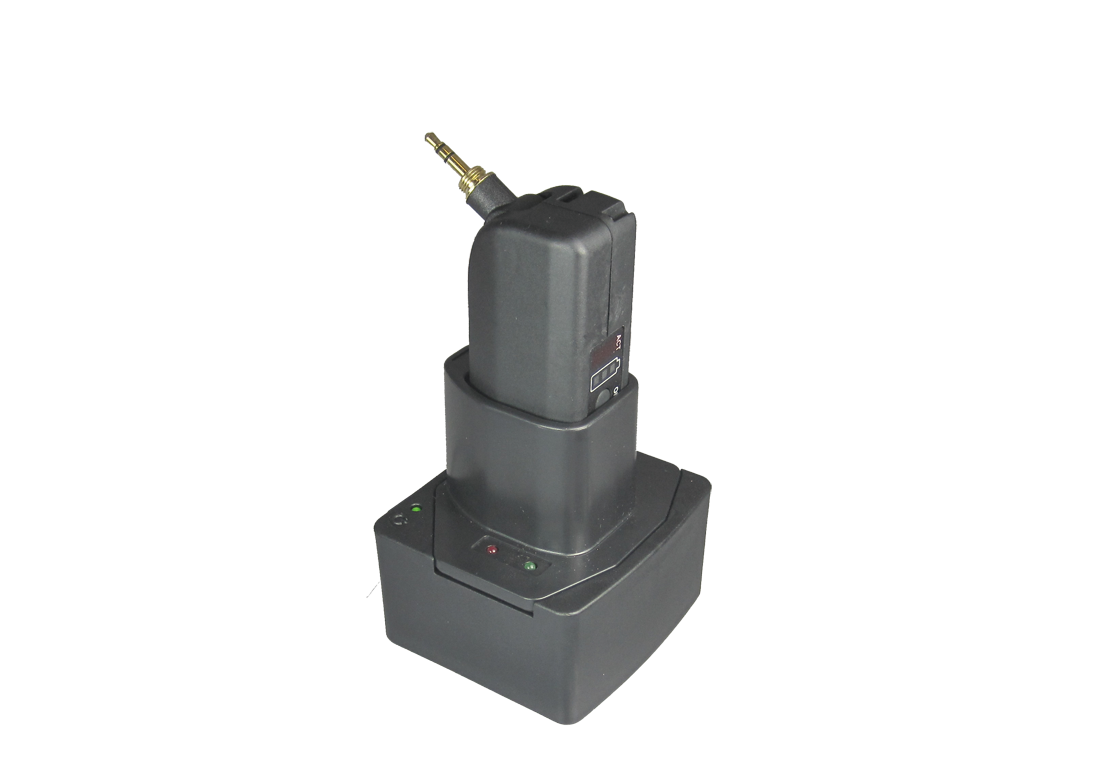

˙ High-effect rechargeable lithium battery

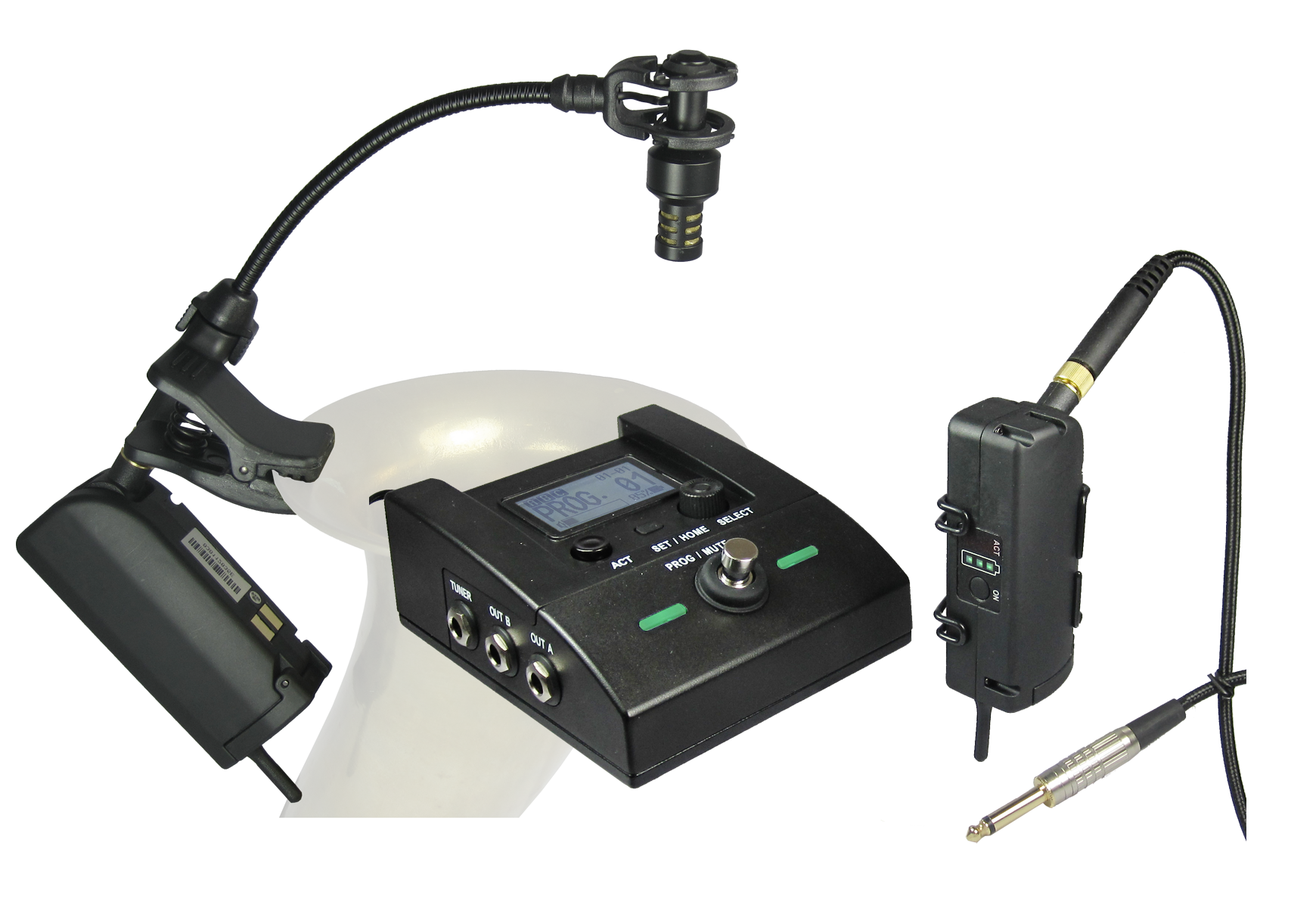

Complete System
-
Model No.
GHD-24G / GHD-24GB
-
Frequency Range
ISM 2400–2483.5 MHz
-
Audio Sampling
24-bit / 44.1 kHz
-
Latency
< 4.0 ms
-
Frequency-hopping
4 preset hopping frequencies
-
Preset Frequency
12
-
Band width
83 MHz
-
Channel set-up
ACT-Sync

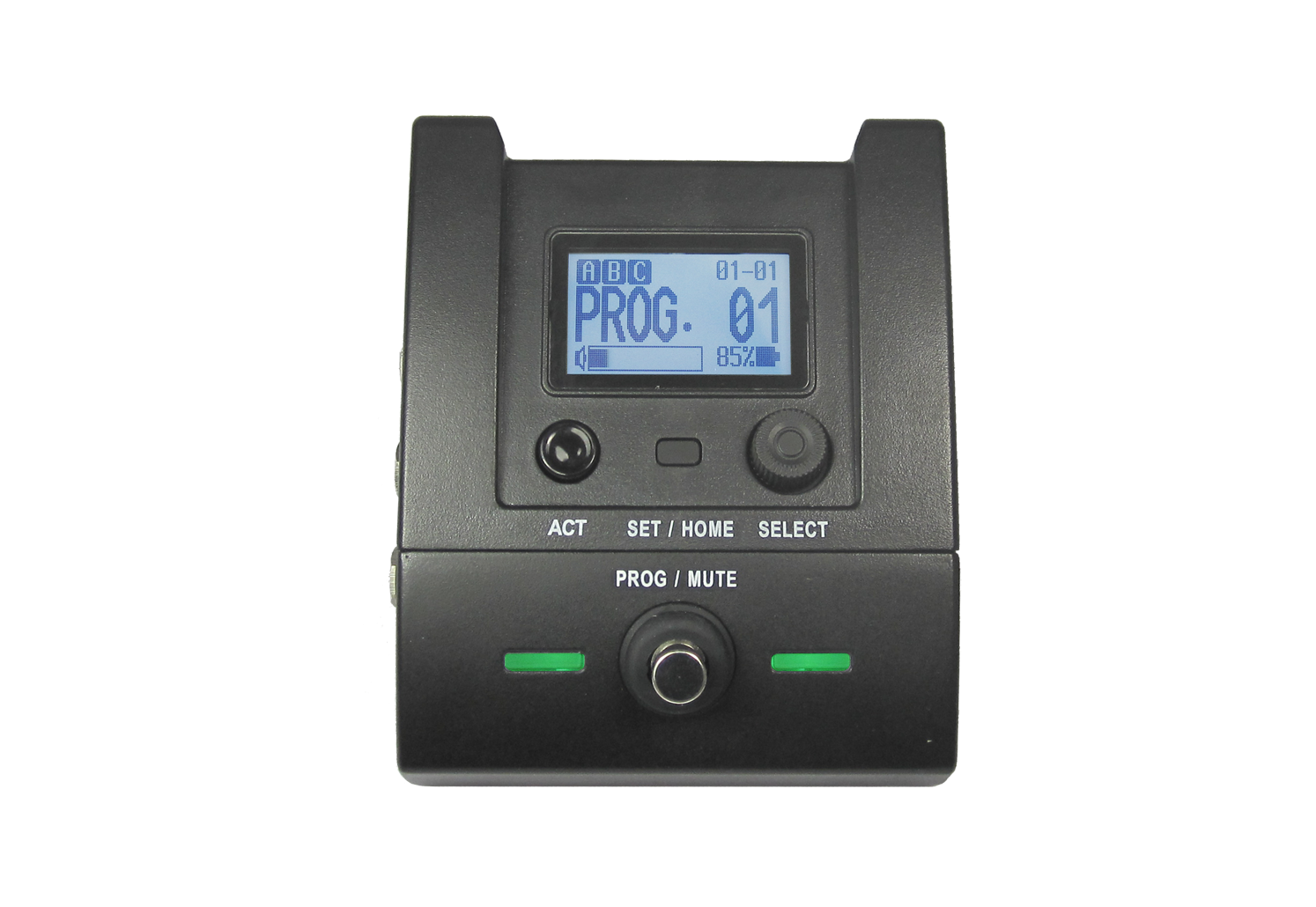

Receiver
-
Model No.
GHD-24MR
-
Frequency response
20-20kHz
-
Display
graphic LCD
-
Frequency Stability
± 0.005%
-
Sensitivity
< -95 dBm
-
S/N ratio
> 115 dB(A)
-
THD
0.1%, @ 1 kHz
-

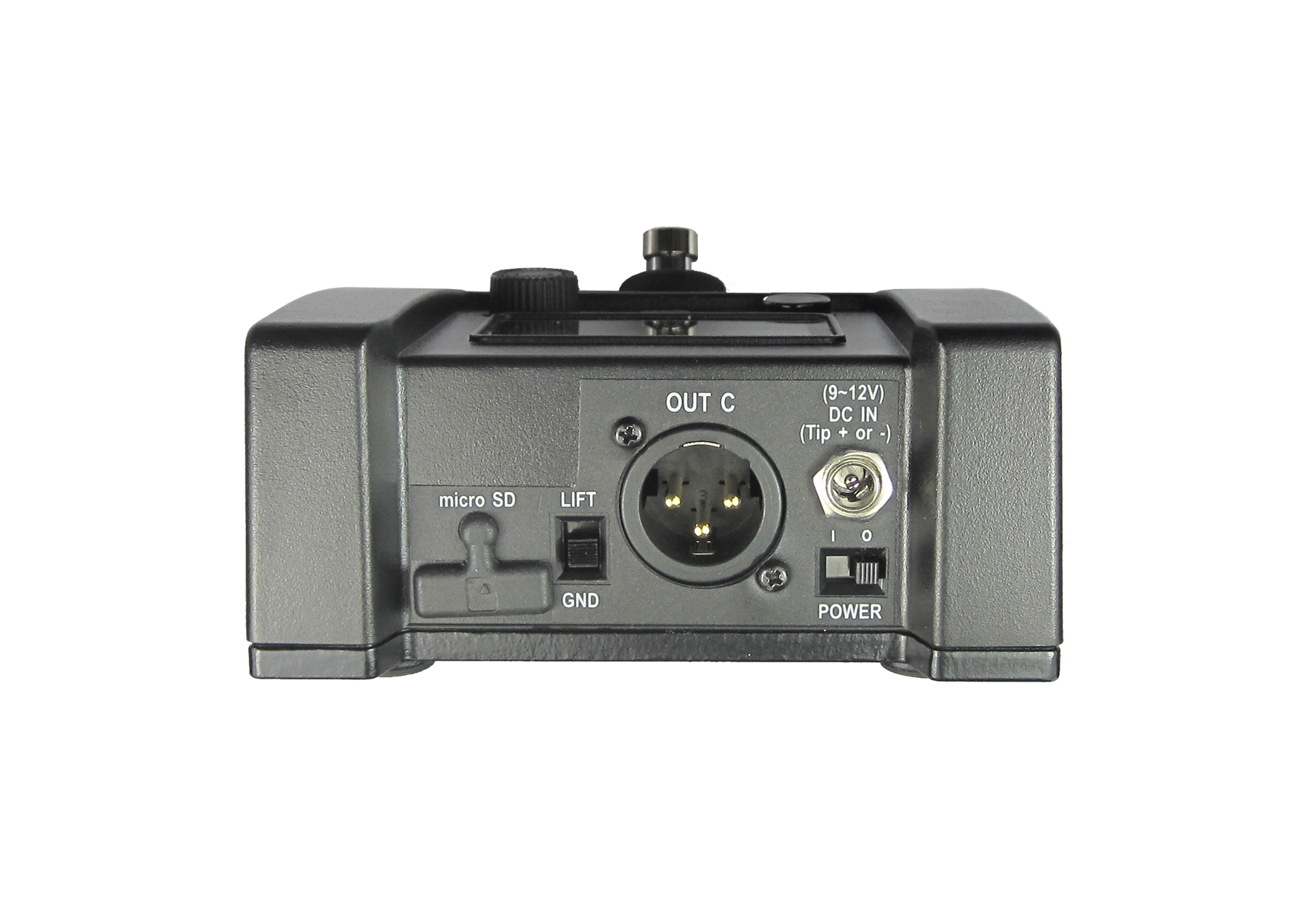

Output
balanced XLR
6.3 mm*2
6.3 tunner jack*1
-
Power supply
12 - 18V DC / 300 mA
-
Size
110*130*50mm
-
Weignt
850g

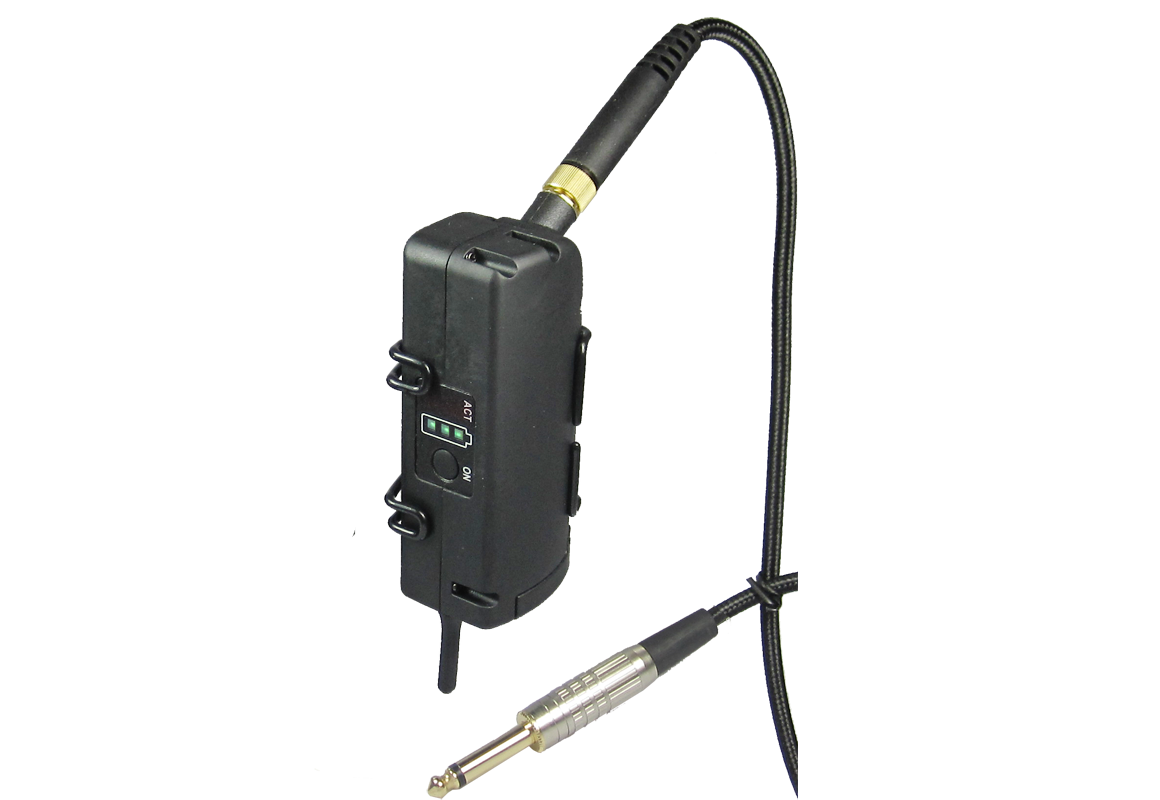

Transmitter
-
Model No.
GHD-2400GT / GHD-2400BT
-
Frequency response
20-20kHz / 65-20kHz
-
RF Output Power
2 / 10mW switchable
-
Max. Audio Input
6.5 dBV
-
Current Consumption
138 mA
-
Battery Meter
4-level green / red LED display
-
Power supply
ICR 18500 lithium battery
-
Operating time
> 10h
-
Size
84*35*29mm
-
Weignt
61g

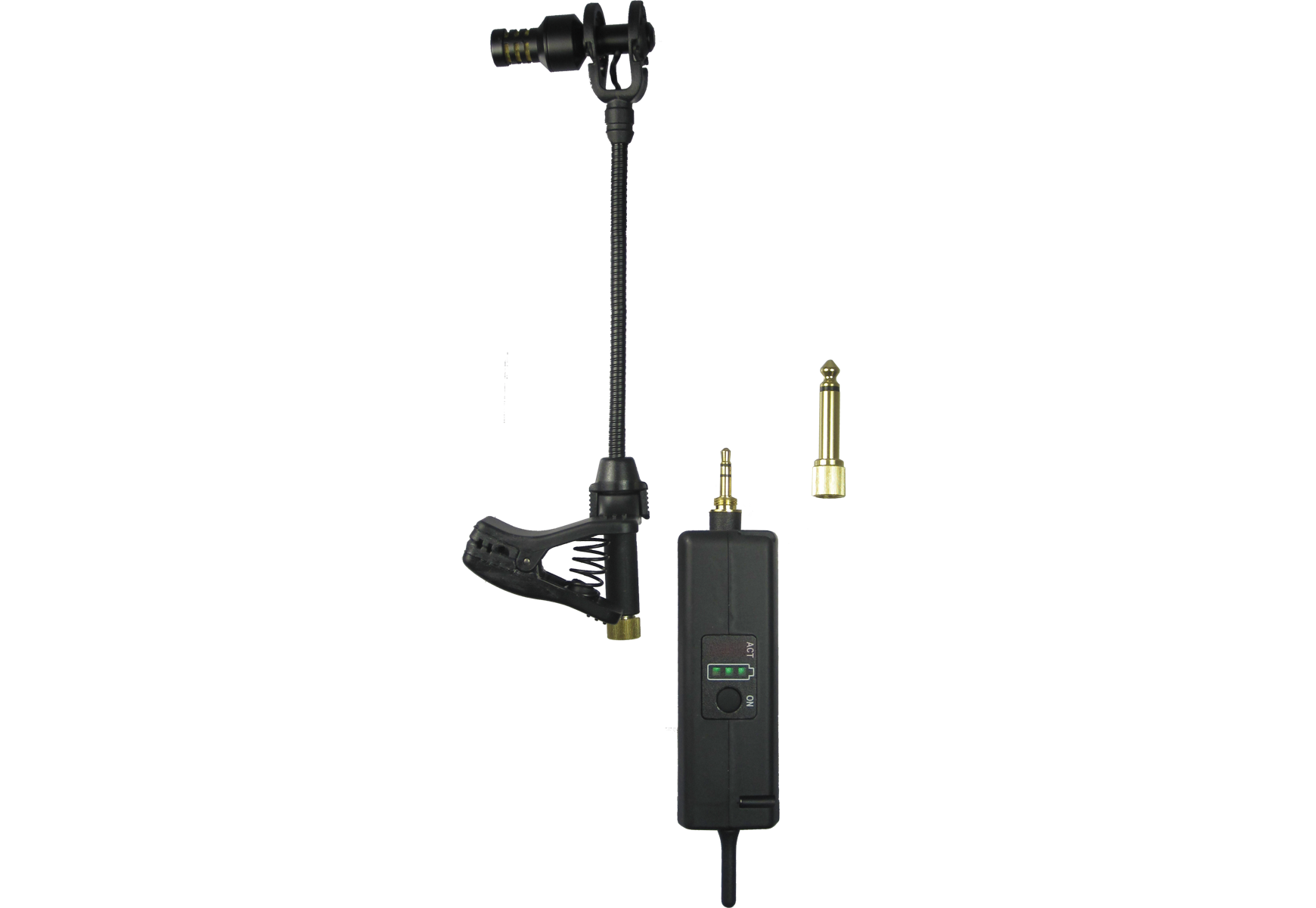

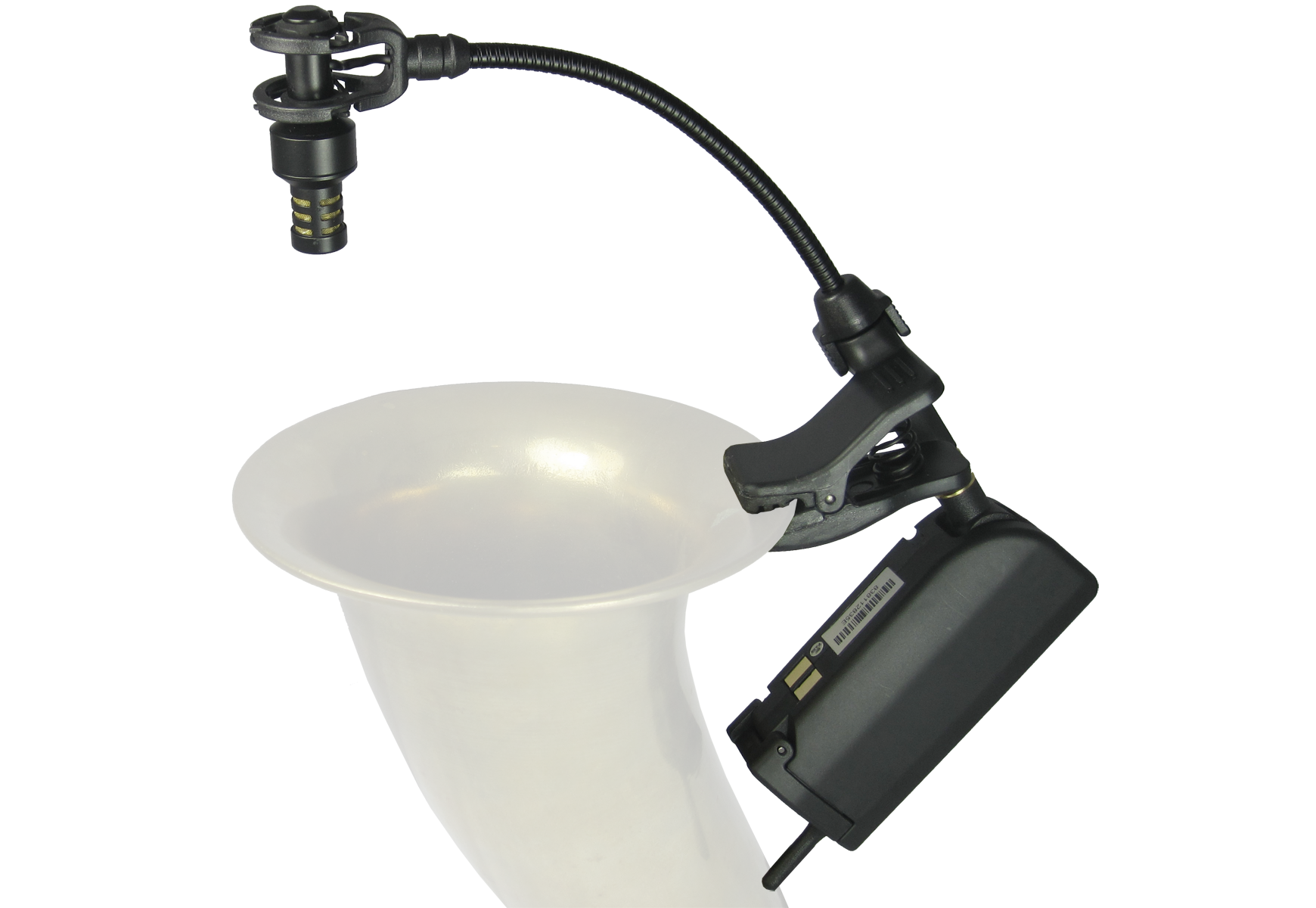

Winds Microphone
-
Model No.
GHD-WM-20
-
Frequency response
65-20KHz
-
Polar Pattern
Cardioid
-
Max. SPL
142 dB
-
Sensitivity
-52 dB
-
Size
10*197mm
-
Weignt
37g
Wireless system
