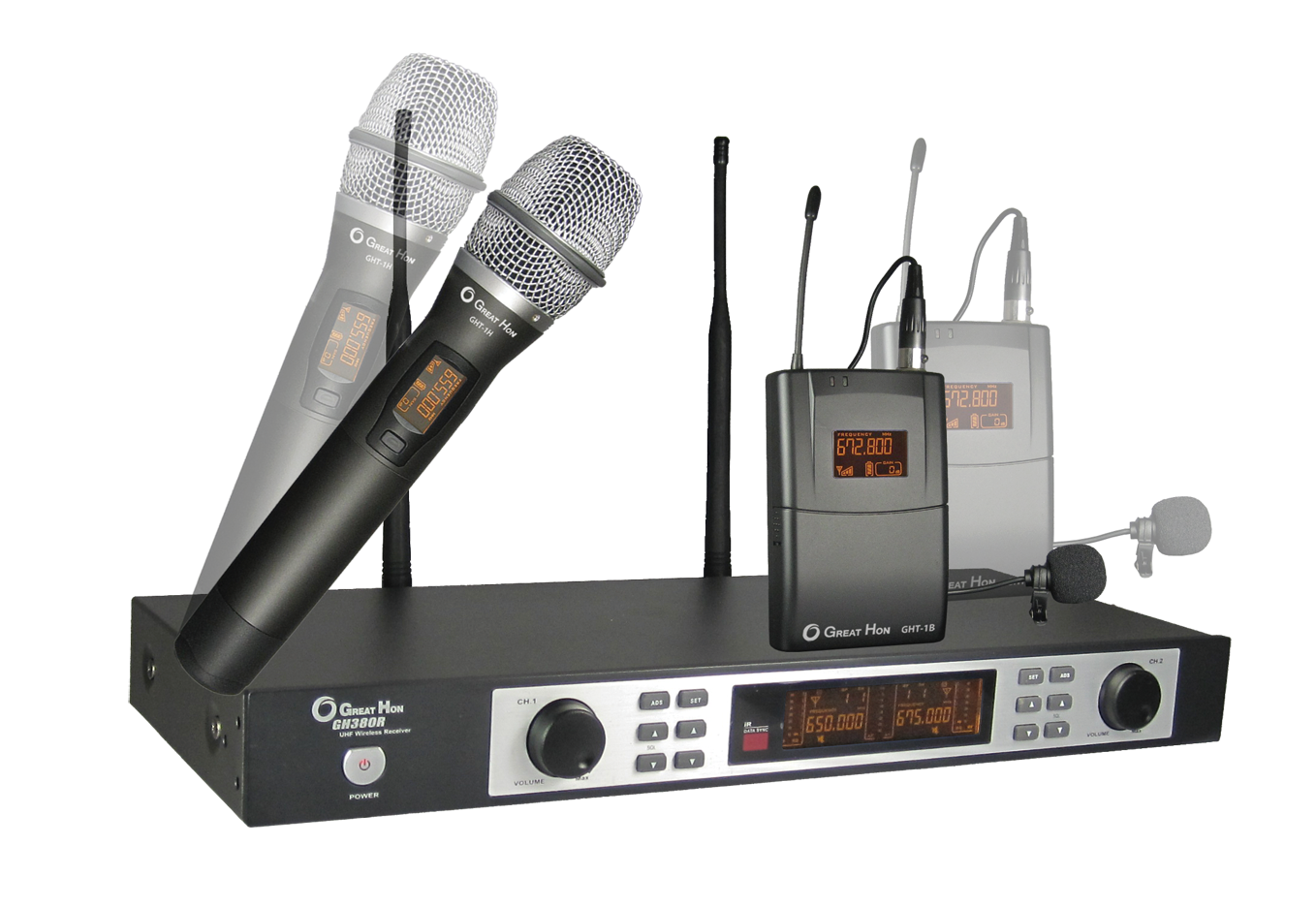

GHT-2 Dual True Diversity System

GHT-2 is a dual professional wireless system for stage and studio recording.
It has a long operation distance, which will be 100 -120 meters in open field.
Sound feature of GHT-1 is specially wonderful for vocal.
Therefore, it is a good selection for recording, live show, or speech.

 UHF single channel diversity technology

Auto-detaction for interference-free channels

10 different groups, which have 16 interference-free channels.

Digital volume & SQL control for easily operating

Operating distance is about 80m
Complete System
  • Model No. GHT-1/GHT-2
  • Frequency Range 600-900 MHz
  • Switching Bandwidth 25MHz
  • Peak Deviation ±55KHz
  • Audio Output Level 8dBu max

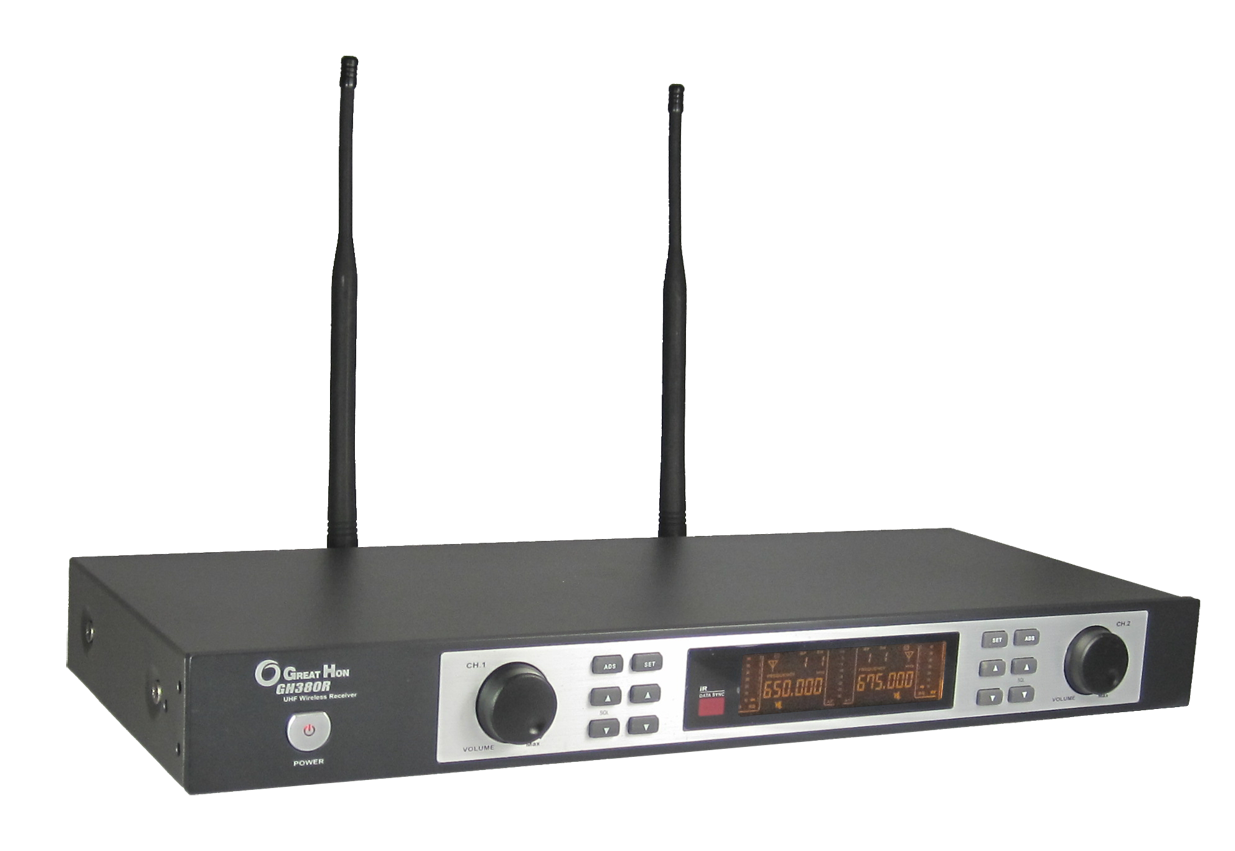

Receiver
  • Model No. GHT-1R/GHT-2
  • Frequency response 20-20KHz
  • Receiving Mode Single Channel, Diversity
  • Selectivity > 80 dB
  • Sensitivity -102 dB
  • S/N ratio 105 dB(A)
  • THD <0.8%, @ 1 KHz
  • Dynamic Range 95dB
  • Output balanced XLR & 6.3 mm (1/4 )
  • Antenna > 2 × 50 Ω fixed antenna
  • Power supply 12 - 18V DC / 500 mA
  • Size > 212*160*44mm / 900 g
Transmitter
  • Model No. GHT-1HT / GHT-1BT
  • Frequency response 20-20KHz
  • RF Output Power 10 mW
  • THD <0.5%
  • Channel Set-Up IR sync
  • Spurious Rejection >55dBc
  • Power supply 1.5V AA battery x 2
  • Operating time > 10h
  • Max Input Voltage GHT-1HT : 600mV / GHT-1BT 1000mV
  • Size GHT-1H : 246*53mm / GHT-1B : 96*64*23mm
  • Weignt GHT-1H : 350g / GHT-1B : 90g
