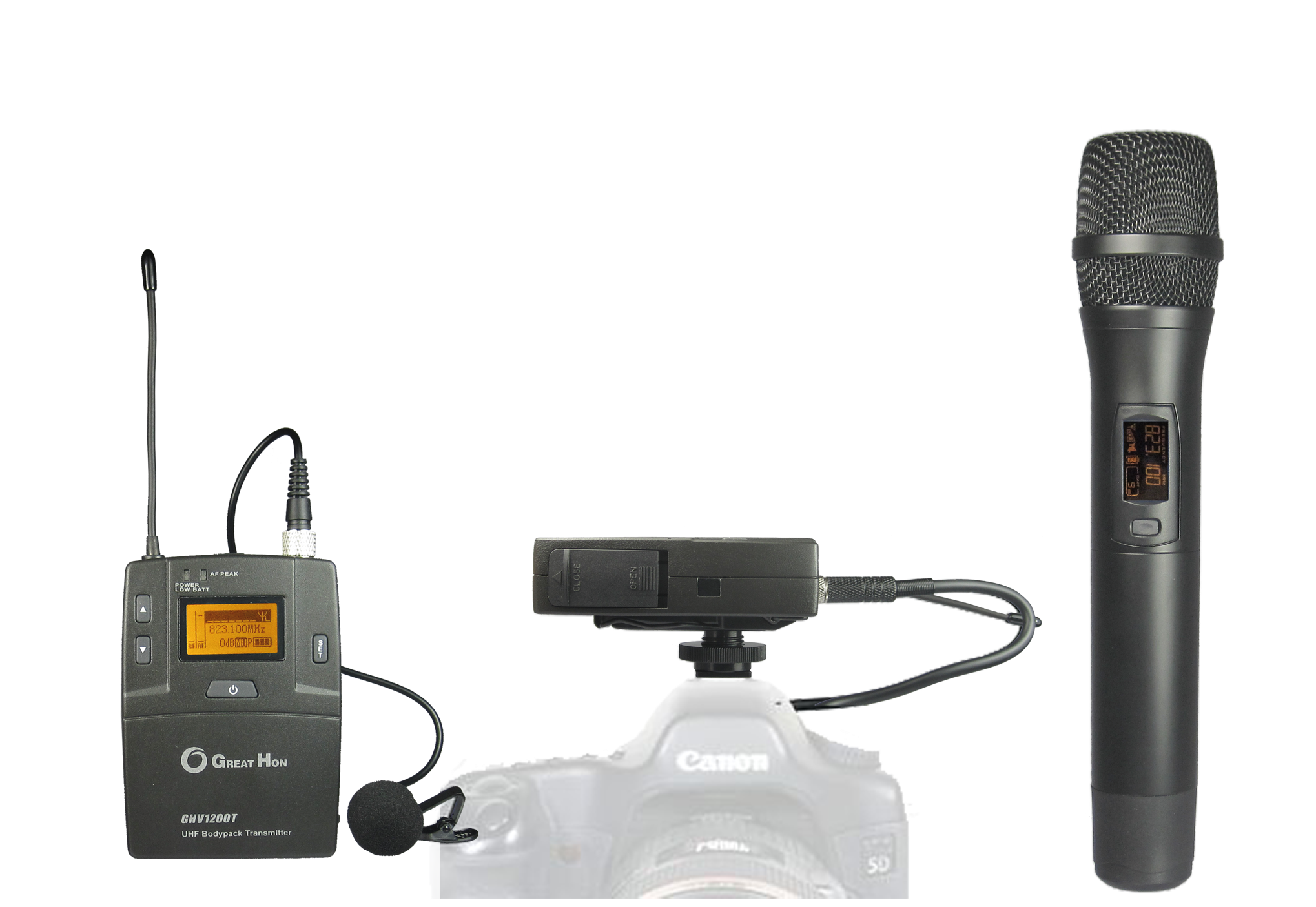

GHV-1200 UHF camera miking system

GHV-1200 is a professional wireless miking system
Sturdy metal housing is designed for any kind of situation for true sound recording

• Wide bands technique for better performance
• Diversity of receiver with new low-noise circuit
• Autoscan for interference-free channels
• Wireless synchronization via IR interface
• Guick volume comtrol in lock mode
• LCD display shows AF, RF, power, pilot tone,
   Edited name, channels, lock and mute

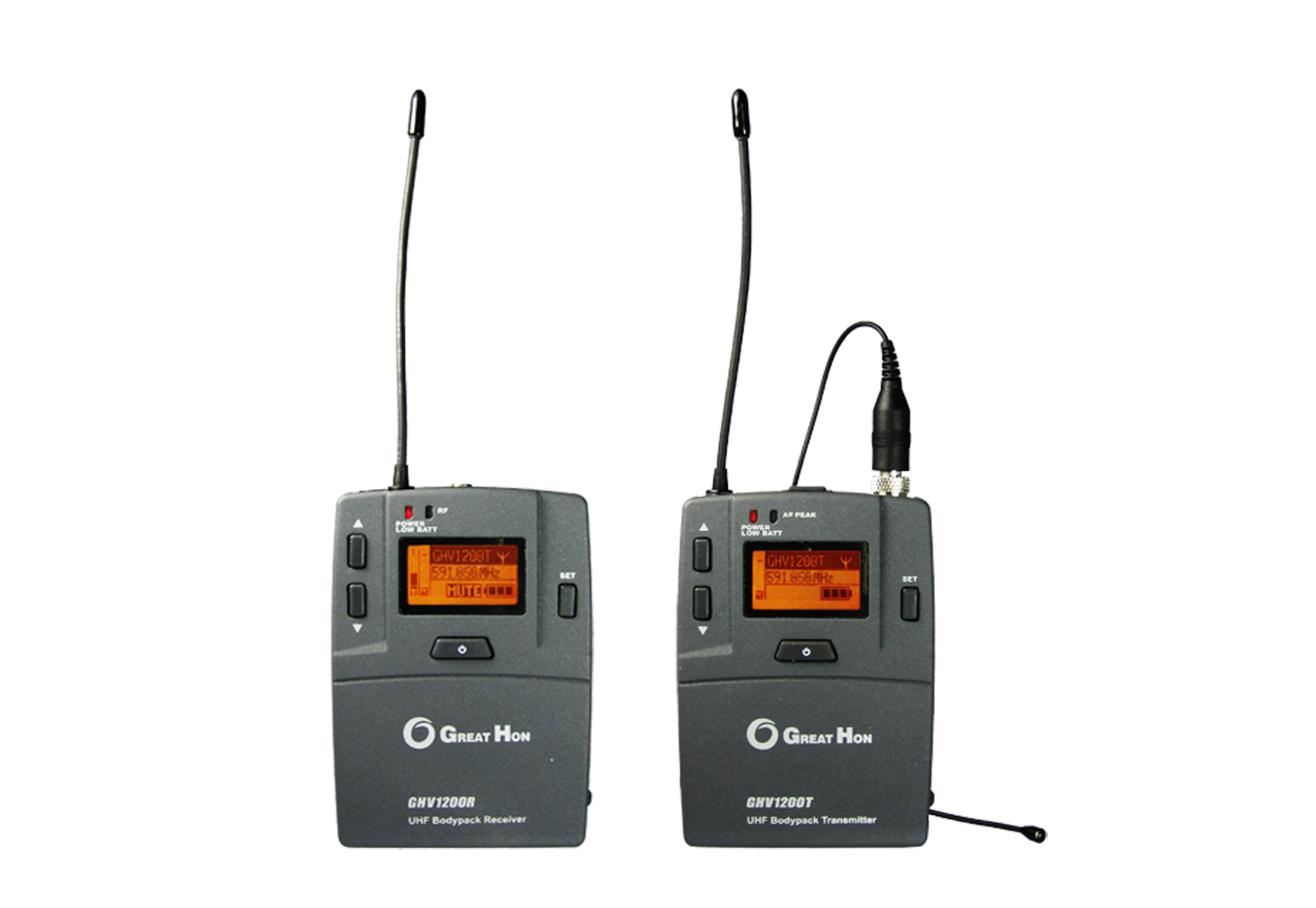

Receiver
  • Model No. GHV-1200R
  • Frequency response 60 ~ 18kHz
  • Display LCD backlight
  • Switch band 42 MHz
  • Sensitivity -102dBm
  • S/N ratio >105dB(A)
  • THD < 0.8%
  • Image rejection 56 dB
  • Output 3.5 mm stereo
  • Power supply 2 *1.5V AA battery
  • Size 90 x 65 x 37 mm
  • Weight 150g

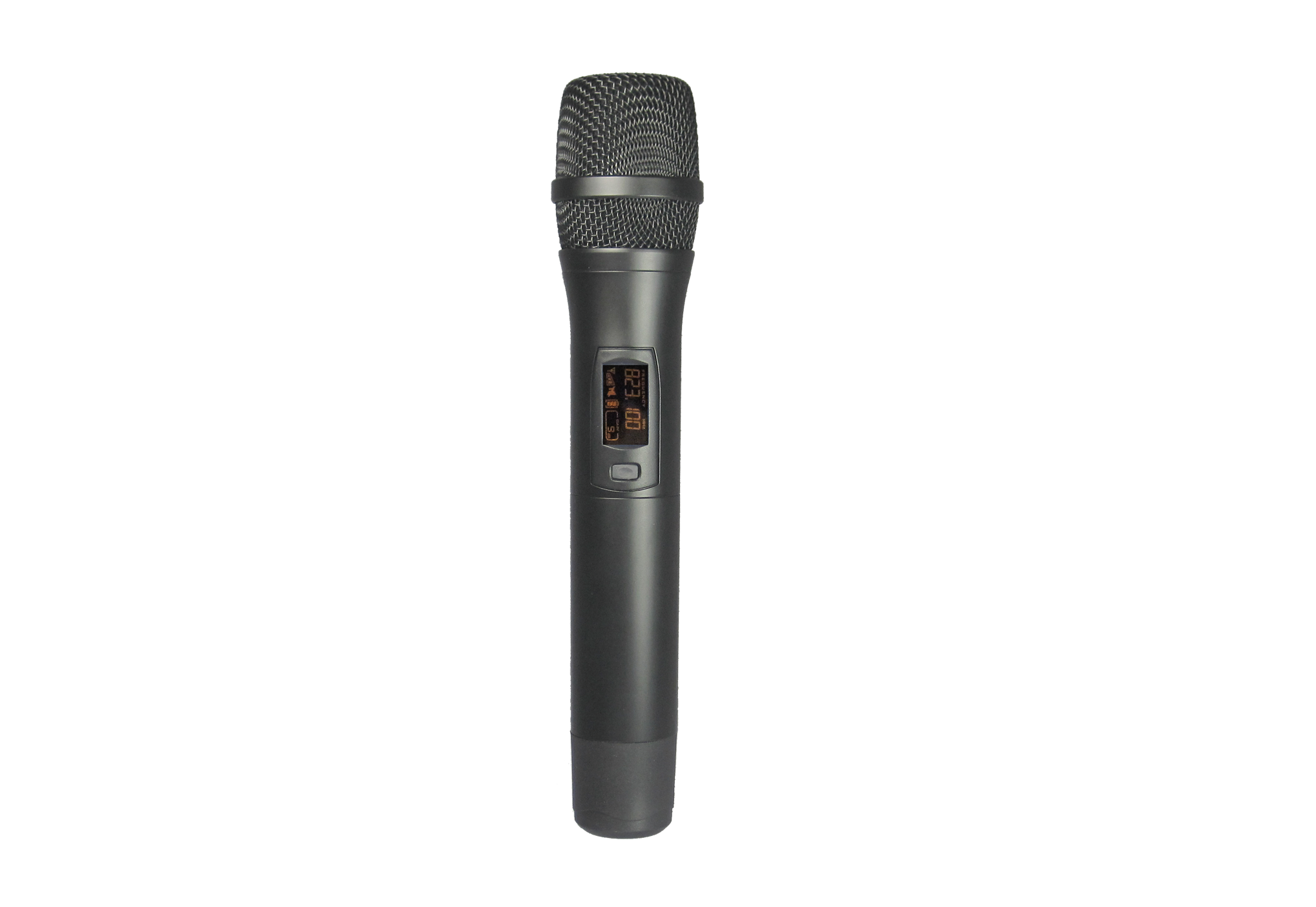

Transmitter
  • Model No. GHV-1200HT / GHV-1200BT
  • Frequency response 60 ~ 18kHz
  • RF Output Power 10mW
  • Max. Audio Input 1000 mV
  • Spurious rejectiom > 55 dBc
  • Channel Set-Up IR sync
  • Input 3.5mm EW stereo
  • Battery Meter 2 *1.5V AA battery
  • Operating time > 10h
  • Size HT : 253*52mm / PT : 65*90*37mm
  • Weignt HT : 255g / PT : 166g
