Wireless systemWireless system

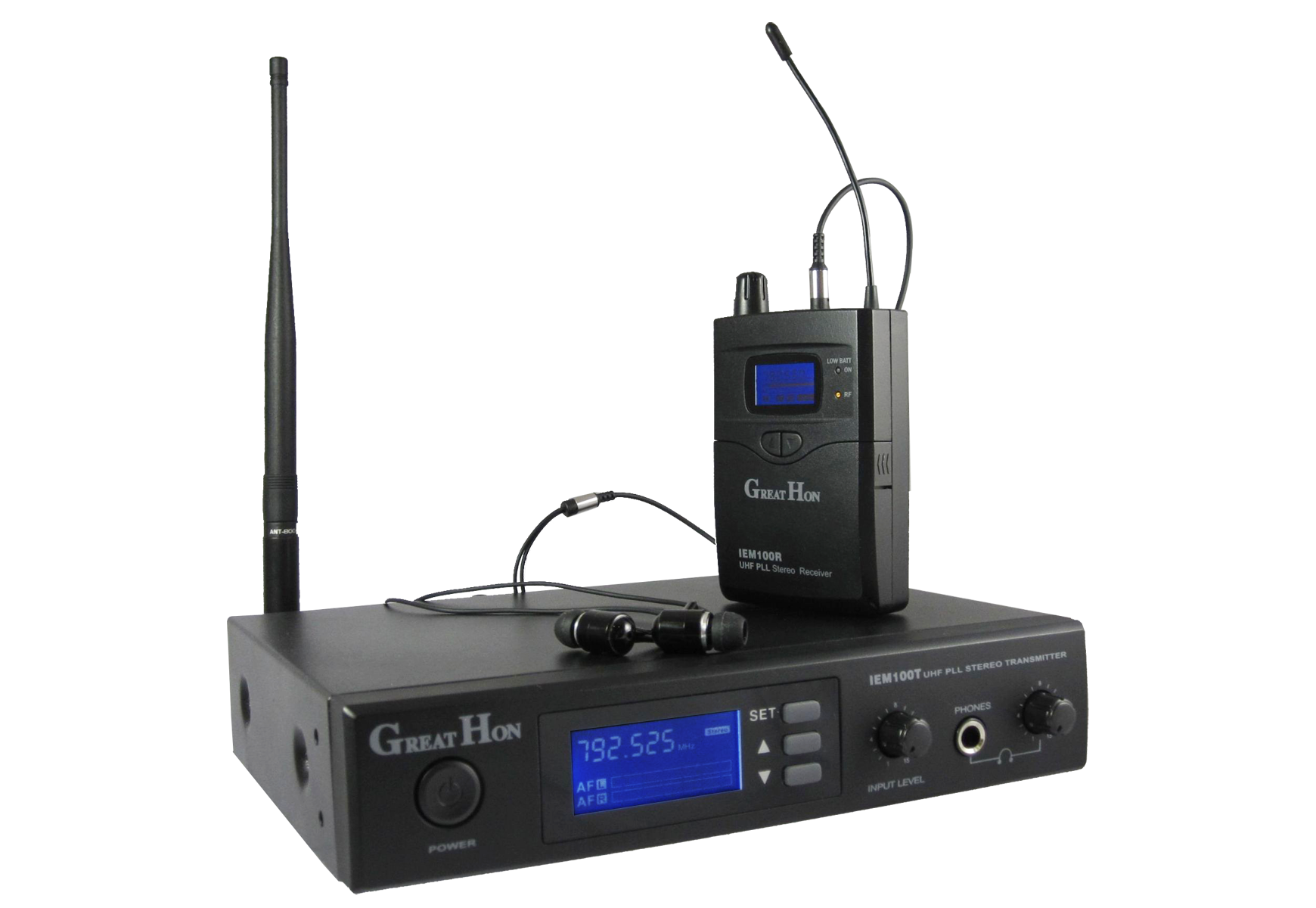

IEM-100

IEM-100 is a professional inear monitoring system for live / studio performance
it is stable and easy to use

10 pre-set groups and altogether 160 optional UHF Bands

16 frequencies work simultaneity without interference

Switchable Stereo and mono modes

Squelch quantum adjustment control

No limit of the receivers
RECEIVER
  • Model No. IEM-100R
  • Frequency response 580~870 MHz
  • Bandwidth 24 MHz
  • Oscillation Mode PLL Synthesized
  • Frequency Stability 60-16kHz
  • Sensitivity <-94 dBm
  • S/N ratio >80 dB(A)
  • THD <1%(at 1kHz)
  • Output 3.5 mm Jack socket
  • Power supply 2 x AA battery
  • Max. Deviation Range 40kHz
  • Dynamic Range >95 dB
  • Operating time >8Hr
  • Size 90x65x24mm
  • Weight 90g
TRANSMITTER
  • Model No. IEM-100T
  • Frequency response 60-16kHz
  • RF Output Power 10mW
  • S/N ratio 85 dB(A) / Stereo mode
  • Spurious Rejection >50 dBc
  • Output Power 10 mW max
  • Audio Input 20 dBV max
  • Battery Meter 4-level green / red LED display
  • Power supply 12~18 V DC / 400mA
  • Monitoring Mode Mono / Stereo
  • Input XLR x 2
  • Output 6.3 mm phone jack
  • Size 200x96x44 mm
  • Weignt 900g
