Wireless systemWireless system

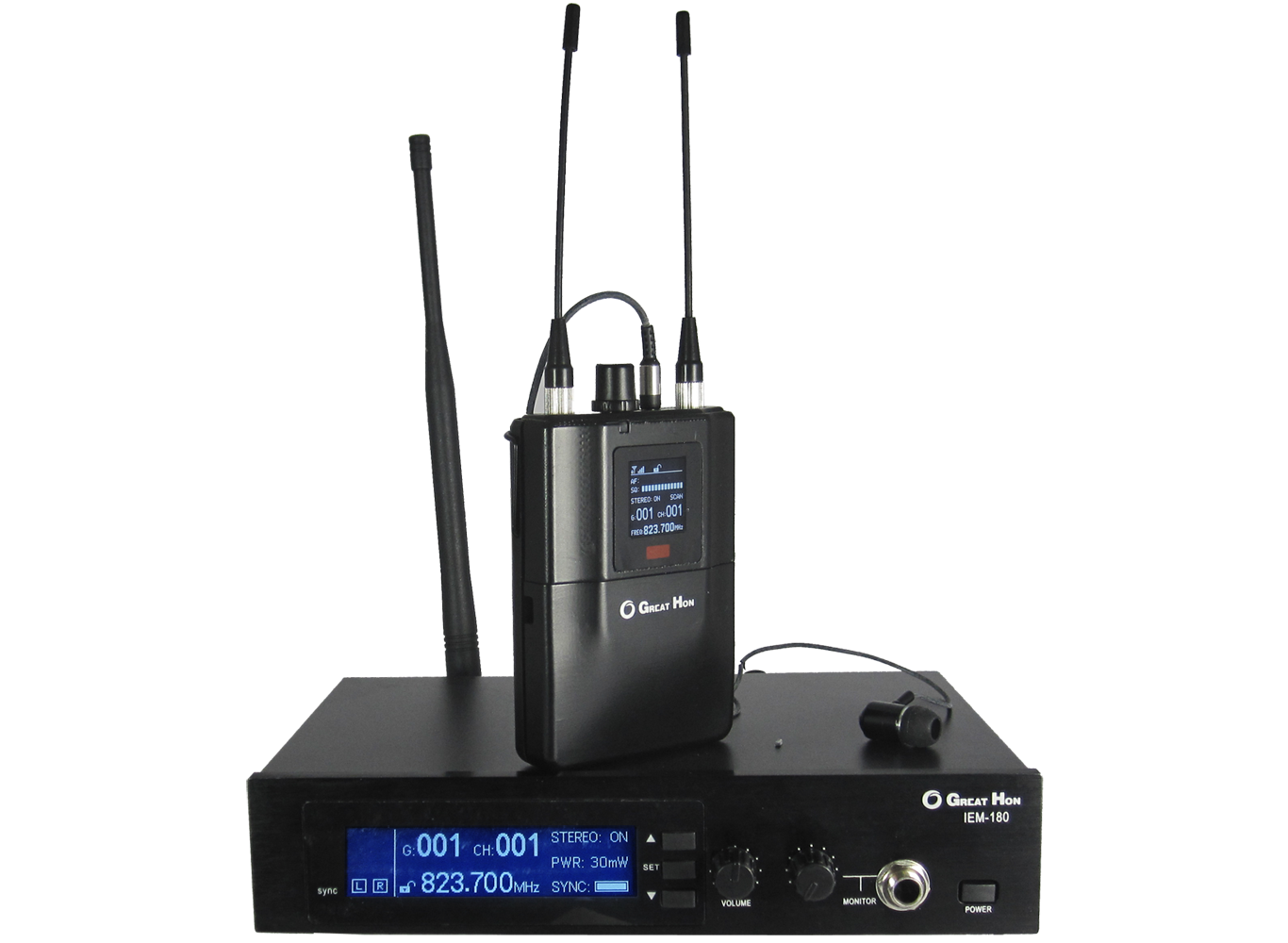

IEM-180

New inear monitor system in 2023

˙  Very low distorsion feature for professional performance
˙  System in metal housing with integrated monitoring function
˙  Oled Display and 2-way frequency mode
˙  Auto-SYNC-Locked via infrared interface
˙  Stereo mix / mono operation by balance control
˙  Operating distance is about 80 meter

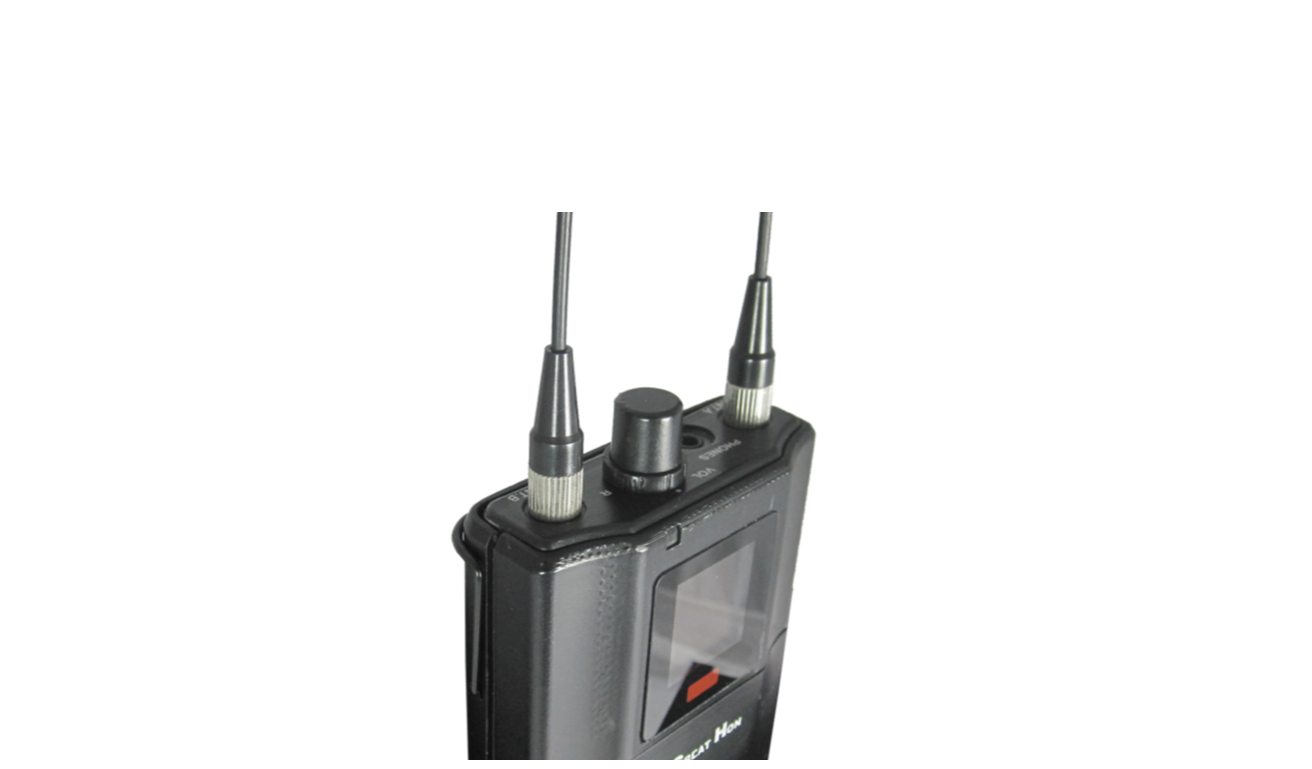

RECEIVER
  • Model No. IEM-180R
  • Frequency response 40-18KHz
  • Display graphic OLED
  • Frequency Stability ± 0.005%
  • Sensitivity < -96 dB
  • S/N ratio > 83 dB(A)
  • THD < 0.3%, @ 1 kHz
  • Audio Output Adjustment -81 ~ 0 dB
  • Output 3.5mm TRS stereo jack
  • Antenna > 2 × 50 Ω fixed antenna
  • Power supply 2 *AA batteries
  • Size 110*65*22 mm / 160g
Transmitter
  • Model No. IEM-180T
  • Frequency response 20-20kHz
  • Spurious rejection > 50dBc
  • RF Output Power 10mW / 30mW
  • Max. Audio Input 20 dBV
  • Channel Set-Up ACT sync
  • Power supply 18V /500mA
  • Size 210*190*49 mm / 900 g
  • Audio input 2 * XLR / jack input,
    6.3mm Monitor jack
