Wireless systemWireless system

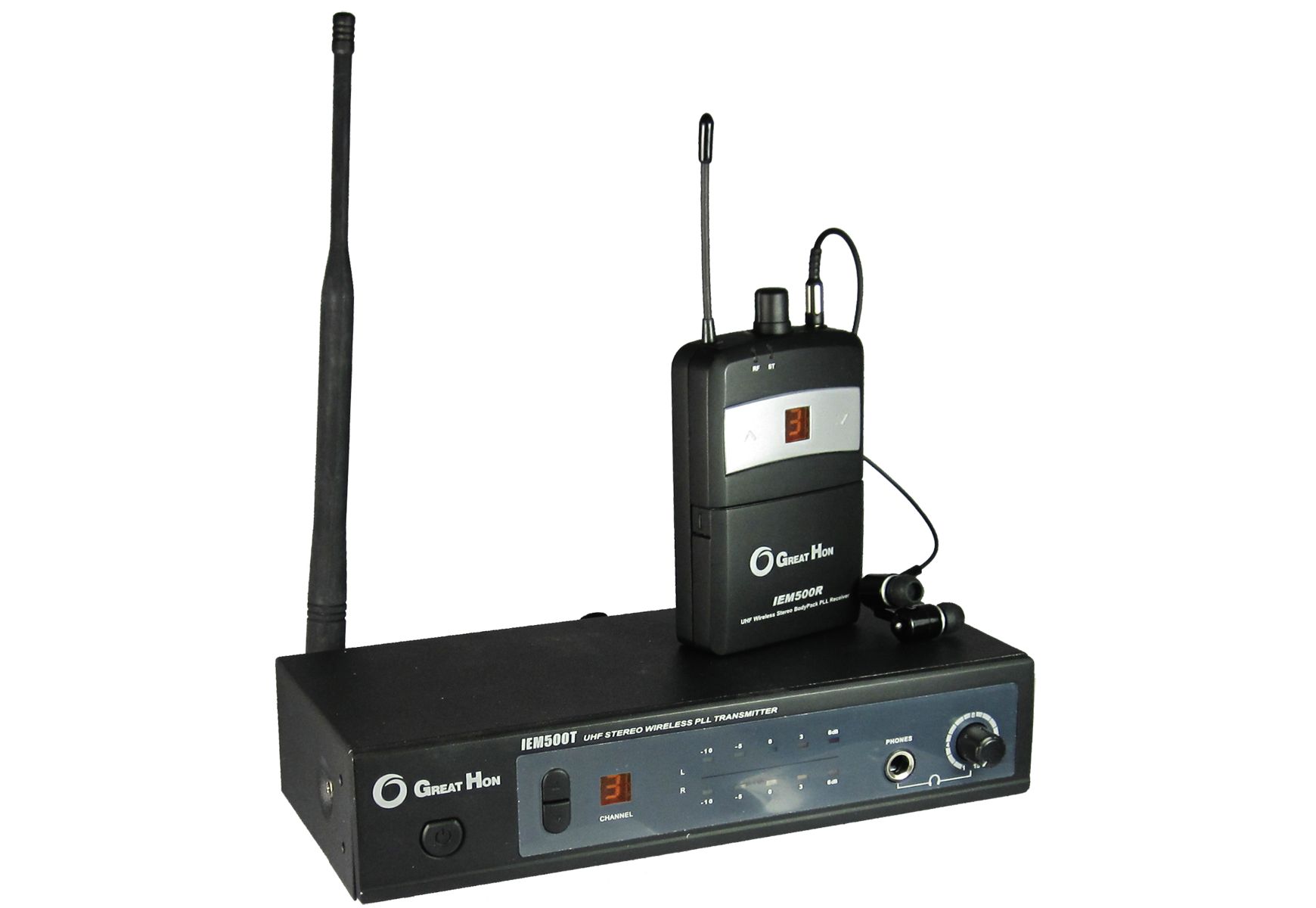

IEM-500

IEM 500 is a basic inear monitor system with excellent sound quality

and it is easy to use


16 Channel work simultaneity without interference

Switchable Stereo and mono modes on receiver

Switchable Stereo and mono modes

LED display for easy operation

No limit of the receivers
RECEIVER
  • Model No. IEM-500R
  • Frequency Range 580~870 MHz
  • Bandwidth 24 MHz
  • Frequency response 70-16kHz
  • Sensitivity -93 dB
  • S/N ratio >80 dB
  • THD <1%
  • Output 3.5 mm Jack
  • Power supply 2 x AA battery
  • Max. Deviation Range 40KHz
  • Dynamic Range >95 dB
  • Operating time >6Hr
  • Size 90x63x24mm
  • Weight 100g
TRANSMITTER
  • Model No. IEM-500T
  • Frequency response 70-16kHz
  • RF Output Power 10mW
  • S/N ratio 85 dB(A) / Stereo mode
  • Spurious Rejection >50 dBc
  • Output Power 80 mW max
  • Audio Input 20dBV max
  • Battery Meter 4-level green / red LED display
  • Power supply 12~18 V DC / 400mA
  • Monitoring Mode Mono / Stereo
  • Input XLR x 2
  • Output 6.3 mm phone jack
  • Size 200x96x44 mm
  • Weignt 900g
