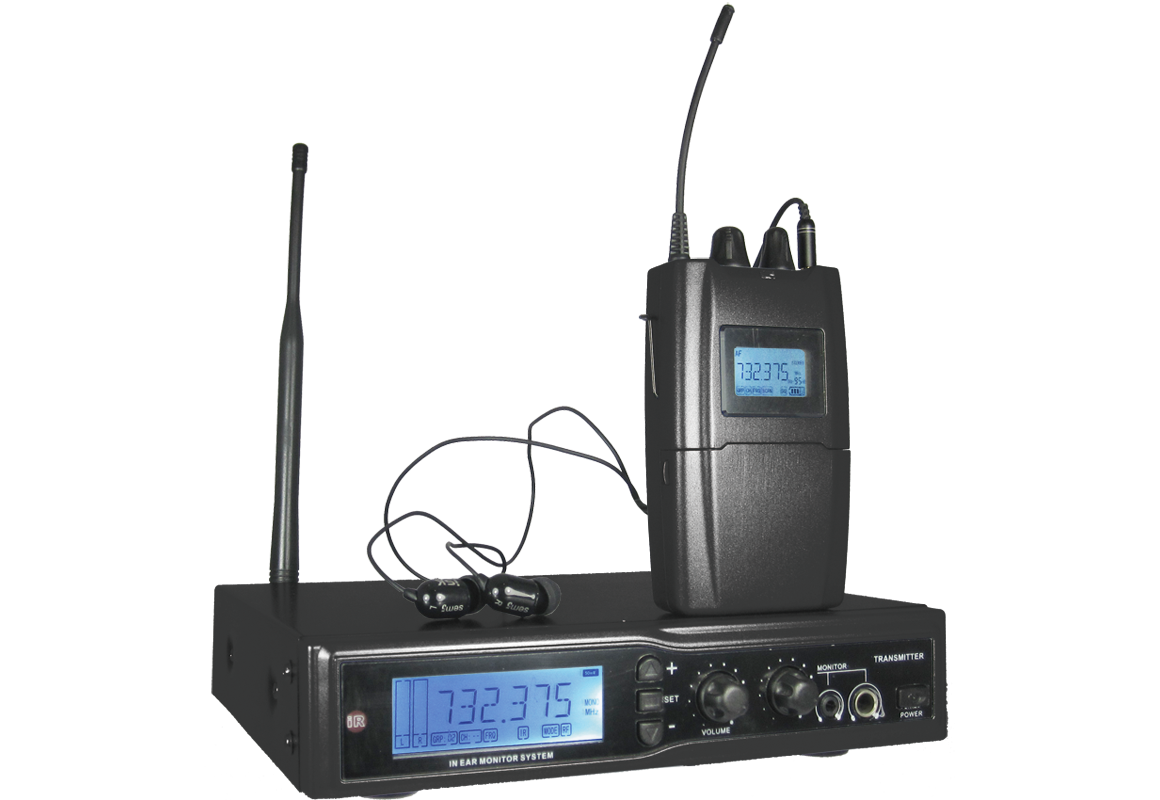

IEM-900

IEM-900 is a reliable inear monitoring system for 20-20KHz full-range monitoring
All the component is very sturdy with full metal housing
Low THD (0.3%) and integrated limiter offers a true-sound monitoring experience.
Knob adjustable L/R-channel control for more flexible usage in kinds of conditions.

Very low distorsion for professional performance

System in metal housing with integrated monitoring function

Stereo and mono mixing operation by balance control

Auto-Sync function for easy use

Operating distance is about 110 meters
RECEIVER
  • Model No. IEM-900R
  • Frequency response 580~900 MHz
  • Bandwidth 24 MHz
  • Oscillation Mode PLL Synthesized
  • Frequency Stability 20-20K Mz
  • Sensitivity -94 dBm
  • S/N ratio >80 dB
  • THD <0.3%
  • Output 3.5 mm Jack
  • Power supply 2 x AA battery
  • Max. Deviation Range 40KHz
  • Dynamic Range >100 dB
  • Operating time >8Hr
  • Size 110x65x22cm
  • Weight 150g
TRANSMITTER
  • Model No. IEM-900T
  • Frequency response 20-20KHz
  • RF Output Power 10mW
  • S/N ratio 85 dB(A) / Stereo mode
  • Spurious Rejection >50 dBc
  • Output Power 50 mW max
  • Audio Input 20dBV max
  • Power supply 12~15 V DC / 600mA
  • Monitoring Mode Mono / Stereo balance control
  • Input XLR x 2
  • Output 3.5 & 6.3 mm phone jack
  • Size 210x190x49 mm
  • Weignt 900g
