Wired microphonesWired microphones

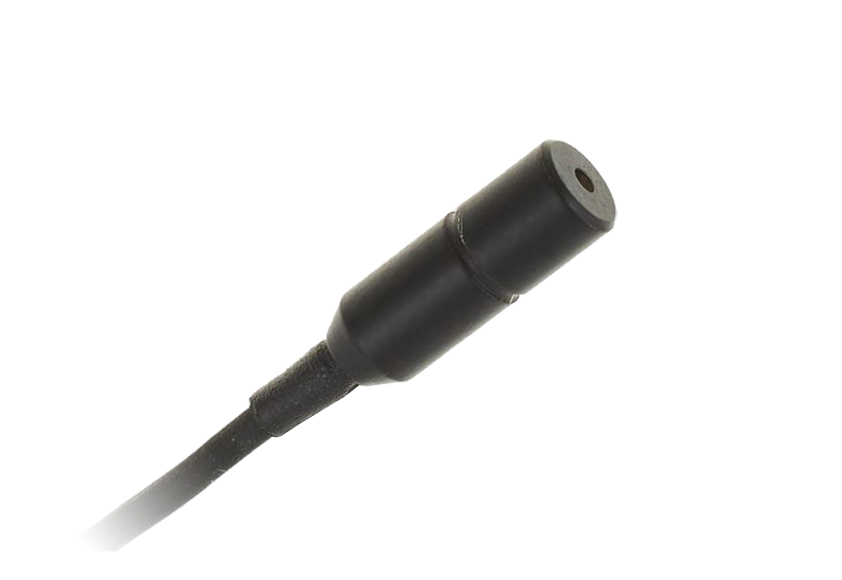

TY-105O Lavaliar Microphone

TY-105O is a good selection as replacement microphone for most famous wireless system.
Featuring an omnidirectional polar pattern, TY-105O is optimized to accurately capture speech.
It provides clear and natural sound ideal for ENG, EFP, and DSLR video applications.
Because omnidirectional microphones are less susceptible to wind noise and vocal
plosives (pops) than cardioid microphones, it is suitable for indoor or outdoor use.

Designed for seech with a compact size

Tiny capsule is just 4mm in diameter

Connector can be TA3, TA4, 3.5mm EW , 3.5mm TRS, 3.5mm TRRS, and AT plug

  • Element condenser
  • Polar Pattern omni-directional
  • Frequency Response 50-20KHz
  • Sensitivity -51dB at 1000Hz
  • SPL 125dB
  • Dynamic Range 105 dB
  • Impendance 300Ohm
  • Operating volt 1.5-12V
  • Connector TA3 / TA4 / 3.5mm EW /
    3.5mm TRS / TRRS /TS
  • Size of Capsule D4 x L12mm
  • cable length D1.5mm x L1.2m
  • Weight 15g
